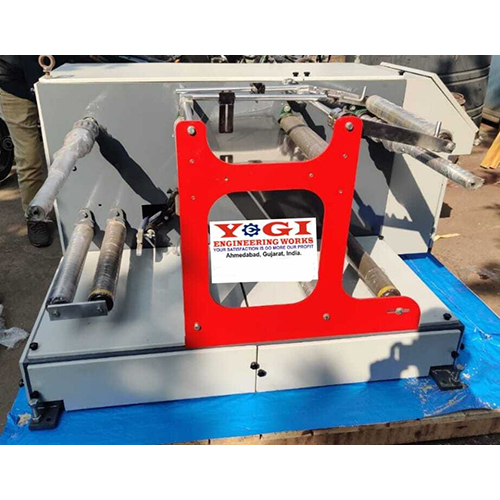

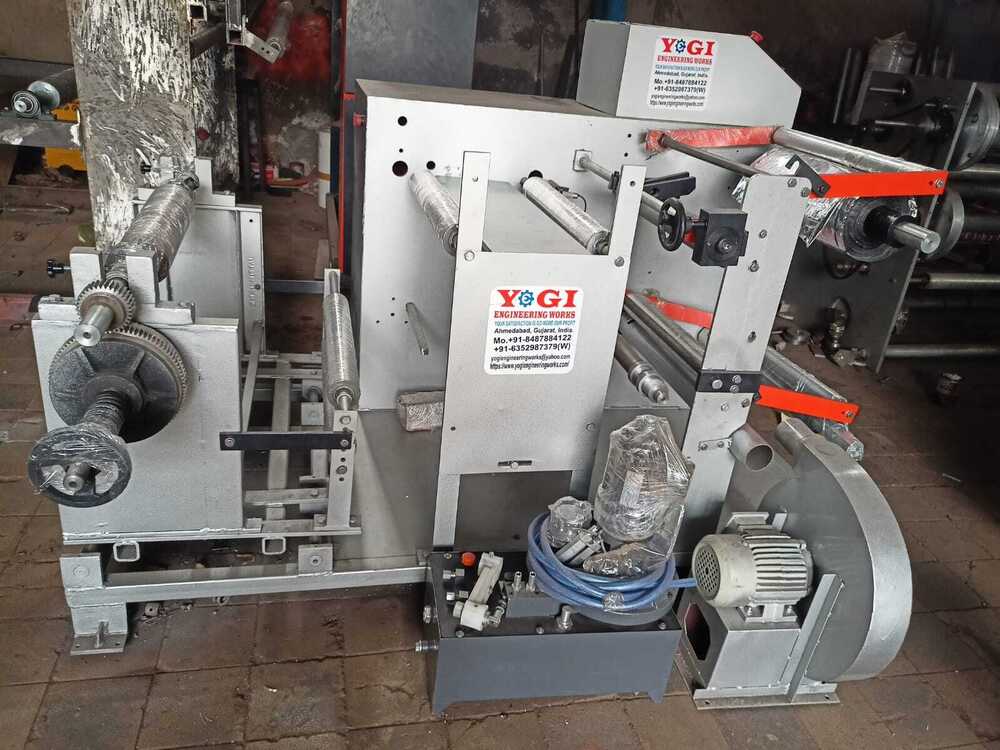

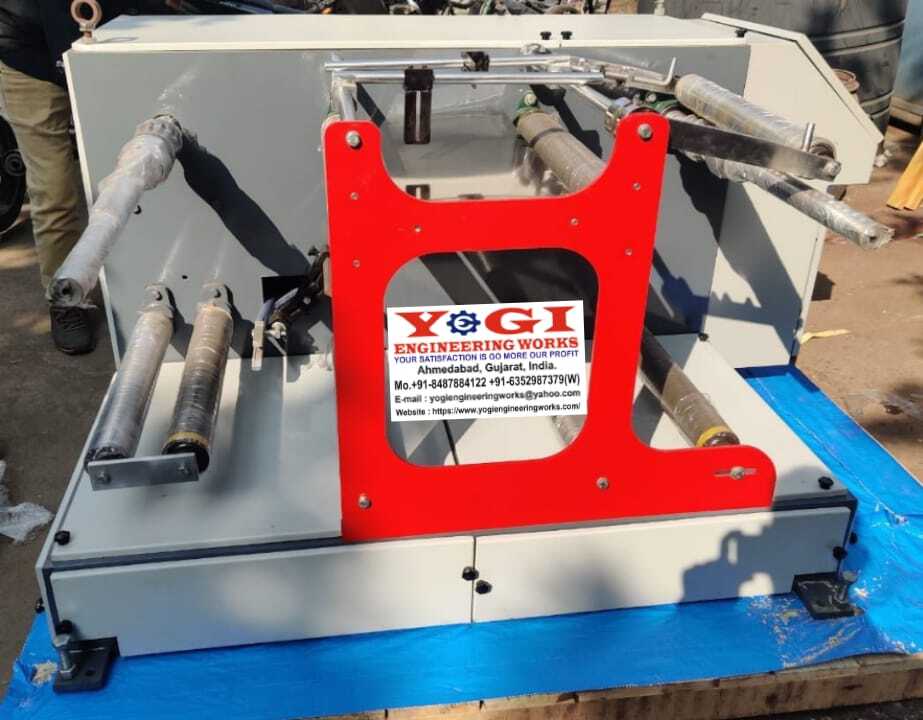

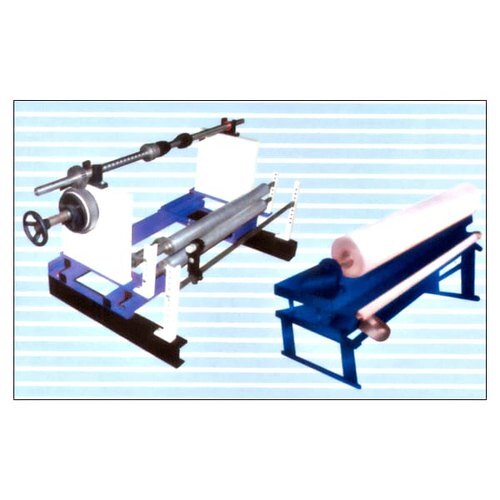

Unwinding Rewinding Machine

Name: Unwinding Rewinding Machine
Brand: YOGI ENGINEERING WORKS
Price: 255000 INR
Availability: InStock

Price 255000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Unwinding Rewinding Machine Specification

Diameter
Up to 500 mm Roll Diameter Millimeter (mm)

Phase
Three

Shape
Rectangular Body Frame

Product Type
Unwinding Rewinding Machine

General Use
For Unwinding and Rewinding Various Materials like Paper, Film, Foil, Non-woven, etc.

Material
Mild Steel & Stainless Steel

Type
Other

Weight (kg)
1000 Kilograms (kg)

Computerized
No

Automatic
Yes

Touch Screen
No

Control System
PLC Based Control Panel

Surface Treatment
Powder Coated

QC System
Standard In-house Testing

Tolerance
0.1 mm Millimeter (mm)

Voltage
440 Volt (v)

Dimension (L*W*H)
2200 mm x 1200 mm x 1500 mm (Approx.) Millimeter (mm)

Color
Blue/Grey

Drive Motor
AC Motor with Variable Frequency Drive

Noise Level
<75 dB

Brake Type
Pneumatic / Powder Brake

Web Alignment System
Edge Guide System Included

Minimum Web Width
300 mm

Maximum Roll Weight
800 kg

Installation
Onsite Support Available

Optional Attachments
Web Tension Control, Counter, Slitting System

Speed
Up to 200 m/min

Unwind/Rewind Shaft Type
Air Expanding Shaft

Power Consumption
Approx. 3 kW

Unwinding Rewinding Machine Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
5 Units Per Month

Delivery Time
30 Days

Main Domestic Market
All India

About Unwinding Rewinding Machine

Technical Speciation:

Heavy Duty MS Plate Structure

Motor 3 HP A.C. Motor

Control Panel 3 HP A.C.-Digital A.C. frequency Drive
(Penal Section we provide you Start and Stop Button, Length Counting meter,Speed adjustable, Sensor & Emergency Stop.)
SlittingSystem with 5 No. Cutters
Equipmentfor Slitting Operations
(UnwinderUnit) (Check Nut) (Slip Rings)
Blower System for Trimming Arrangement
Mechanical Shaft Unwinder side Chuck-Nut-Bearing use
Mechanical Break System for Tension Unwinder Jumbo Roll
Web (Edge) Guide System-Hydraulic- (This machine so that you can take properrewinding and finishing for Your Roll.)
All Side Vertical Covered from M.S. Sheet
Heavy Duty Chain Drive System
Rewinding Speed: 100 MPM.
Weight of Machine 800 Kg Approx.
Machine Available: Three Phase

Precision and Performance

The unwinding rewinding machine incorporates an edge guide system and variable frequency drive to deliver consistent web alignment and controlled speed up to 200 m/min. Its high-precision tolerance (0.1 mm) ensures accuracy for various converting processes, providing superior results with every use. Designed for automatic operation, it simplifies material handling while maintaining low noise levels below 75 dB for a quieter working environment.

Versatile Material Handling

Suitable for materials such as paper, film, foil, and non-wovens, this machine accommodates customizable web widths between 1000 mm and 2000 mm. Its robust air expanding shafts, adjustable torque, and support for heavy rolls (up to 800 kg) make it adaptable for a broad range of industrial applications. Optional attachments like tension controls, counters, and slitting systems can be added to meet specialized processing requirements.

FAQs of Unwinding Rewinding Machine:

Q: How does the edge guide system improve web alignment during operation?

A: The integrated edge guide system continually monitors and adjusts the materials position as it travels through the machine, ensuring precise alignment of the web and reducing waste caused by misaligned rolls. This is especially important for materials requiring high-precision winding.

Q: What types of materials can this unwinding rewinding machine process?

A: This machine is suitable for unwinding and rewinding a variety of materials, including paper, film, aluminum foil, and non-woven fabrics, making it ideal for printers, packaging companies, and converting plants.

Q: When should web tension control or slitting systems be added as optional attachments?

A: Web tension control is recommended when processing delicate or stretchable materials that require stable tension to avoid wrinkles or breakage, while the slitting system should be added for applications that involve cutting wide rolls into narrower widths during rewinding.

Q: Where is onsite installation support available for this machine?

A: Professional onsite installation support is available across India, ensuring correct setup, alignment, and operator training for seamless integration into your facility.

Q: What is the typical process for unwinding and rewinding materials with this machine?

A: Materials are loaded onto the air expanding shaft at the unwind section, passed through web alignment and tension control systems, and rewound onto new rolls using the rewind shaft. The PLC-based control panel allows operators to manage speed, tension, and alignment parameters throughout the process.

Q: How is operator safety and machine reliability ensured?

A: The machine is constructed with high-quality mild steel and stainless steel for durability. It features standard in-house QC testing, powder-coated surfaces for protection, and safety mechanisms such as low-noise operation, stable body frame, and reliable pneumatic or powder brakes.

Q: What are the main benefits of using this automatic high-speed unwinding rewinding machine?

A: The key advantages include high-precision unwinding and rewinding, efficient changeovers with air shafts, customizable web widths, user-friendly PLC controls, and the ability to handle heavy rolls. These features boost productivity and ensure consistent, quality output in demanding industrial environments.
