Winder Rewinder Machine for Batch Printing

Send Inquiry

Request To Call Back

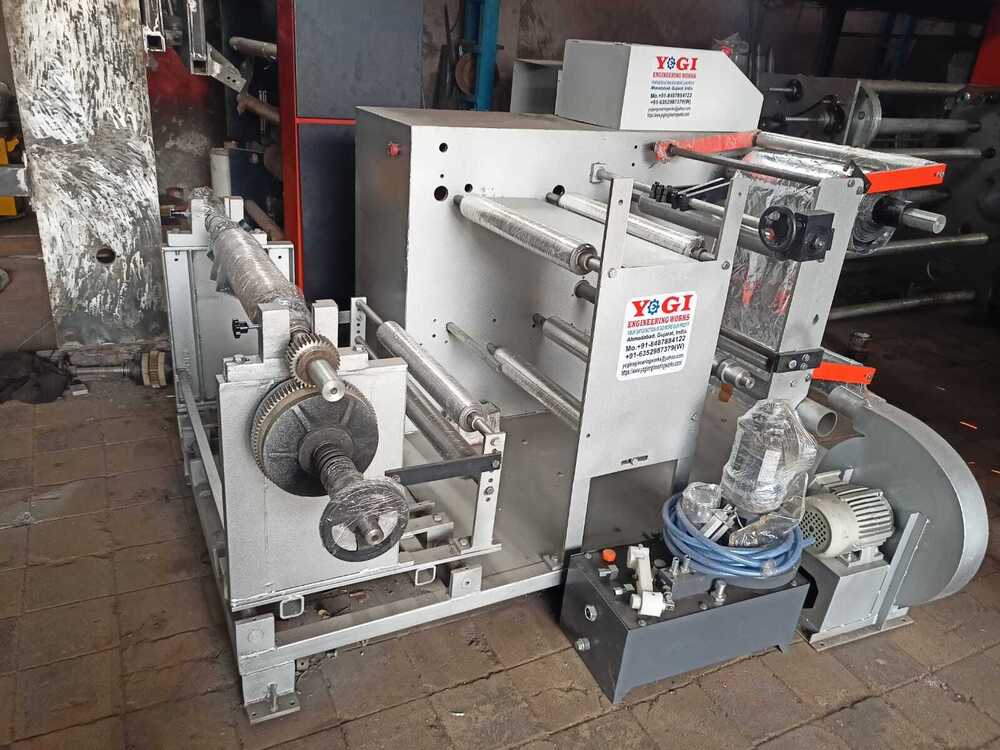

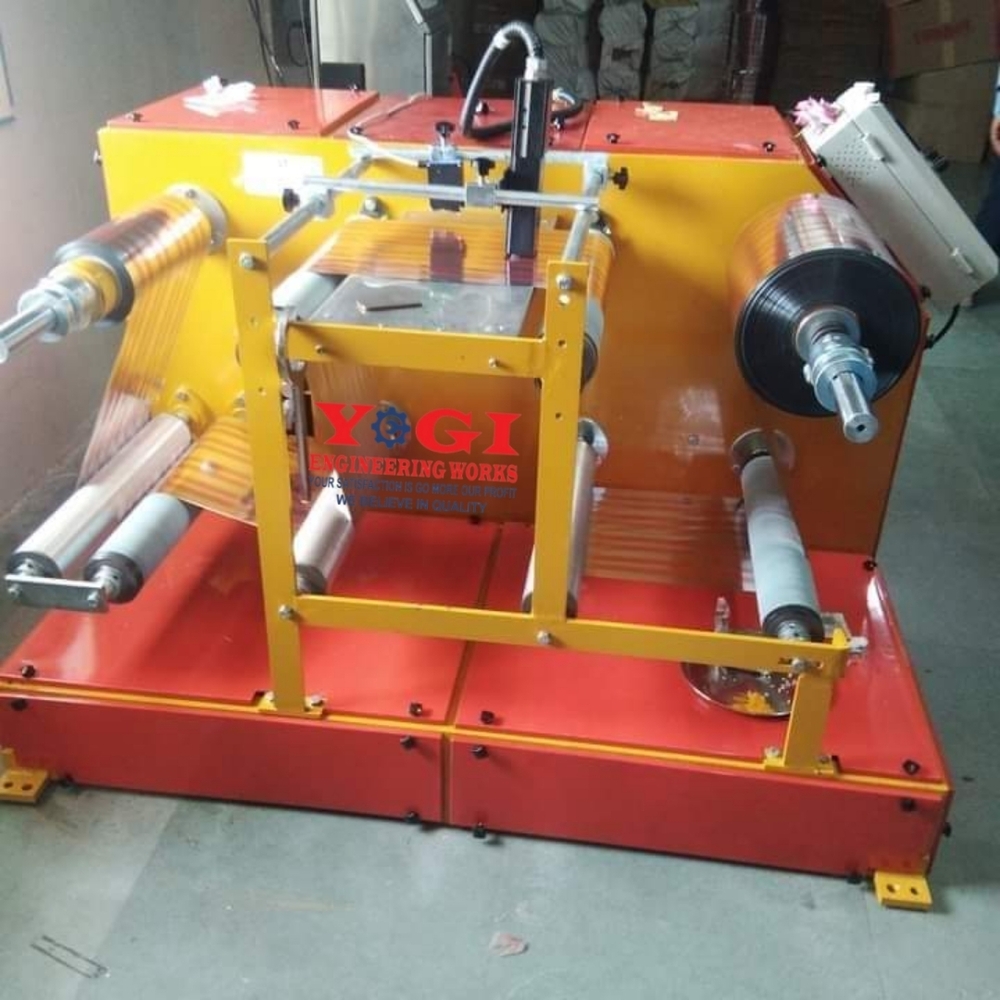

Winder Rewinder Machine for Batch Printing

Name: Winder Rewinder Machine for Batch Printing
Brand: YOGI ENGINEERING WORKS
Price: 225000 INR
Availability: InStock

Price 225000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Winder Rewinder Machine for Batch Printing Specification

Shape
Rectangular Base, Cylindrical Rollers

Torque
High Torque Motor Driven N-m

Phase
Three

Diameter
Roll Core 76 mm (Standard) Millimeter (mm)

Product Type
Winder Rewinder Machine for Batch Printing

General Use
Batch printing, label slitting, and rewinding operations

Material
Mild Steel Body / SS Rollers

Capacity
Up to 80 meters/min Pcs/min

Weight (kg)
500 Kilograms (kg)

Computerized
Yes

Control System
Frequency Speed Control

Surface Treatment
Powder Coated / Painted

QC System
Visual Inspection & Run-Tested

Tolerance
0.5 mm Millimeter (mm)

Voltage
440 Volt (v)

Dimension (L*W*H)
1800 x 800 x 1200 mm Millimeter (mm)

Color
Blue & Silver

Max. Roll Weight
Up to 80 kg

Safety Features
Emergency Stop, Safety Guard

Operating Temperature
5°C to 45°C

Noise Level
<75 dB

Roll Loading/Unloading
Manual / Pneumatic Options

Power Consumption
2.5 kW

Web Width
50 to 450 mm

Display Type
Digital Counter (Length/Quantity)

Rewind/Unwind Roll Diameter
Up to 500 mm

Applications
Pharmaceutical, Food, Packaging, and Label Industries

Motor Type
AC Electric Motor

Winder Rewinder Machine for Batch Printing Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
5 Units Per Month

Delivery Time
25 Days

Main Domestic Market
All India

About Winder Rewinder Machine for Batch Printing

TechnicalSpeciation:

Material will be Process: LD, PP, Film, Pouch, Foil etc.

Maximum Roll Width: 150mm, 450mm, 700mm & 1000mm Standard

Unwinder/Rewinder Roll Dia- Up to 300mm

Jumbo Roll Weight Capacity 35 Kg
Heavy Duty MS Plate Structure
Motor 2 HP A.C. Motor
Control Panel 2 HP A.C.-Digital A.C. frequency Drive
(Penal Section we provideyou Start and Stop Button, Length Counting meter, Speed adjustable, Sensor& Emergency Stop.)
Cantilever Type Design Our Machine Easily Operating System
Any make Printer (Batch Coding) use Our Machine
Encoder Feedback
Mechanical Shaft Unwinder side Chuck-Nut-Bearing use
Mechanical Shaft Rewinder side Chuck-Nut-Bearing use
Mechanical Break System for Tension Unwinder Jumbo Roll
Web (Edge) Guide System-Hydraulic- (This machine so that you can take properrewinding and finishing for Your Roll.)
All Side Vertical Coveredfrom M.S. Sheet
Heavy Duty Chain Drive System
Rewinding Speed: 120 MPM.
Weight of Machine 800 Kg Approx.
Machine Available: Three Phase

Efficient and Versatile Design

Engineered for efficient batch printing, label slitting, and rewinding, this machine handles various materials with web widths from 50 to 450 mm and roll diameters up to 500 mm. Its high-torque AC electric motor ensures smooth, high-speed operation, while the robust powder-coated or painted build guarantees strength and durability for long-term industrial use.

User-Centric Controls and Safety

The machine features a digital counter for accurate length or quantity tracking and offers both semi-automatic and fully automatic operational modes. Safety is prioritized with emergency stop buttons, safety guards, and low noise operation (<75 dB), creating a secure working environment for operators.

Reliable Performance Across Industries

Designed with heavy-duty capacity and a sturdy build, this winder rewinder meets the high demands of pharmaceutical, packaging, and labeling environments. Its advanced QC systemfeaturing both visual inspections and rigorous run-testingensures optimal performance for every application.

FAQs of Winder Rewinder Machine for Batch Printing:

Q: How does the Winder Rewinder Machine facilitate batch printing and label slitting operations?

A: This machine is designed to unwind, print, slit, and rewind rolls efficiently for various materials. The precise web width adjustment (50 to 450 mm) and advanced digital counter enable accurate length or quantity management during batch operations, ensuring high-quality and consistent output for pharmaceutical, food, packaging, and label industries.

Q: What are the benefits of the machines sturdy construction and high-torque AC motor?

A: Its heavy-duty mild steel body and stainless steel rollers offer robust durability and longevity, while the high-torque AC electric motor ensures reliable, high-speed operation up to 80 meters/min. This combination minimizes downtime and supports continuous, smooth production for demanding industrial tasks.

Q: Where can this winder rewinder machine be effectively utilized?

A: This versatile machine is ideal for use in pharmaceutical plants, food packaging facilities, label manufacturing units, and related industries in need of precise batch printing and material handling. Its flexibility makes it suitable for both small-scale and large industrial applications throughout India and beyond.

Q: What safety features are incorporated to ensure operator protection?

A: The machine is equipped with an emergency stop button and safety guards to enhance operator protection. Additionally, its low noise level (<75 dB) and smooth operation make the workplace safer and more comfortable for frequent use.

Q: What options are available for loading and unloading rolls, and how do they work?

A: The machine supports both manual and pneumatic roll loading/unloading options. Manual loading is suitable for lighter rolls or basic operations, while pneumatic mechanisms simplify handling heavier rolls (up to 80 kg), improving efficiency and reducing operator fatigue during setup or changeovers.

Q: When should maintenance be performed to ensure optimal operation?

A: Regular visual inspections and adherence to the run-tested QC system are recommended. Routine maintenance such as cleaning, lubrication, and checks on the rollers, safety devices, and control systems can prevent downtime and extend the lifespan of the machine.
