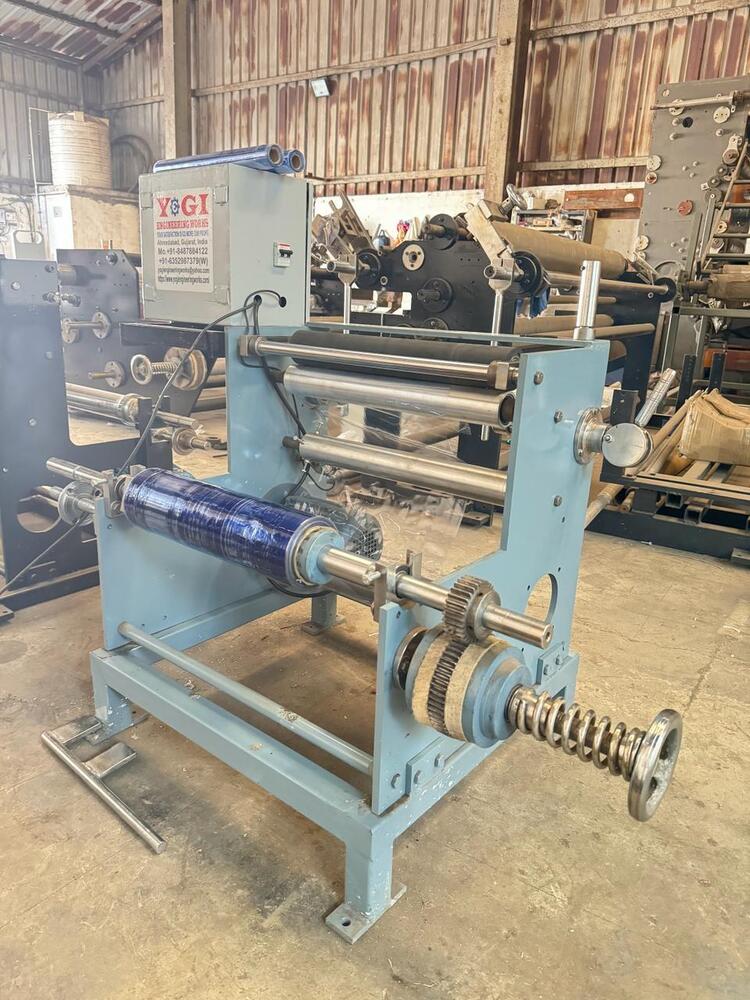

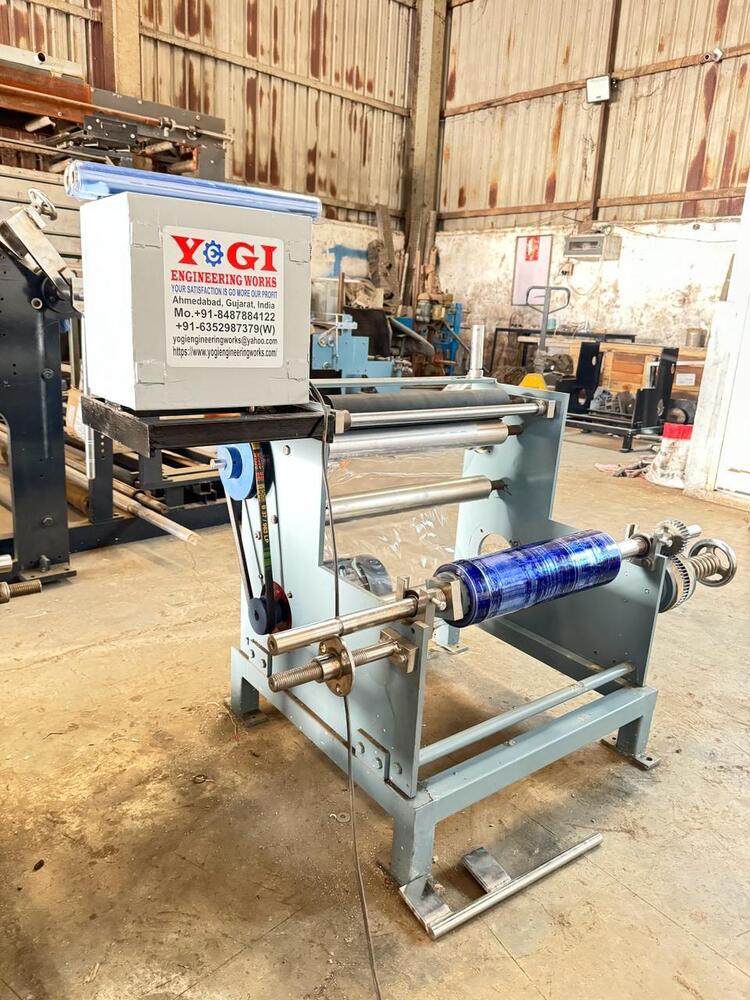

Notebook Cover Roll Rewinding Machine

Name: Notebook Cover Roll Rewinding Machine
Brand: YOGI ENGINEERING WORKS
Price: 64500 INR
Availability: InStock

Price 64500 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Notebook Cover Roll Rewinding Machine Specification

Shape
Rectangular Base

Diameter
Max Roll Diameter 800 mm Millimeter (mm)

Phase
Single

Product Type
Notebook Cover Roll Rewinding Machine

General Use
For precise rewinding of notebook cover rolls

Material
Mild Steel

Type
Other

Weight (kg)
300 Kilograms (kg)

Computerized
Yes

Automatic
Yes

Touch Screen
Yes

Control System
PLC Control

Surface Treatment
Powder Coated

QC System
Integrated Quality Inspection

Tolerance
0.5 mm Millimeter (mm)

Voltage
240 Volt (v)

Dimension (L*W*H)
2300 mm x 1200 mm x 1400 mm Millimeter (mm)

Color
Blue & White

Notebook Cover Roll Rewinding Machine Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID), Cheque, Cash Advance (CA)

Supply Ability
10 Units Per Month

Delivery Time
20 Days

Main Domestic Market
All India

About Notebook Cover Roll Rewinding Machine

TechnicalSpeciation:

Material will be Process: NotebookCover-HM Paper/Film

Roll Working Width: 16 inch-400mmStandard

Jumbo Roll Weight Capacity 30 Kg
Heavy Duty MS Plate Structure
1 No. Rubber Roll-Wrinkle Removing System
Core less Rewinding/ With Paper Core Rewinding
Motor 1 HP A.C. Motor
Control Panel 1 HP A.C.-Digital A.C. frequency Drive
(Penal Section we provide you Startand Stop Button, Length Counting meter, Speed adjustable, Sensor.)
Unwinder side Mechanical Shaft Chuck-Nut-Bearing use
Mechanical Break System for Tension Unwinder Jumbo Roll
Machine Speed: 100 meter/min.

Weight of Machine 250 Kg Approx.
Machine Available: Single/ Three Phase

High-Efficiency Rewinding with Advanced Technology

Our Notebook Cover Roll Rewinding Machine combines robust mechanics with computerized controls, including PLC and a user-friendly touch screen. The AC motor with inverter guarantees consistent torque and optimal speed, allowing operators to manage rolls with widths up to 1000 mm and diameters up to 800 mm. The centralized lubrication system and emergency safety features ensure minimal maintenance and enhanced workplace safety, making it a leading choice for businesses prioritizing output and operator welfare.

Precision and Flexibility for Modern Printing Needs

Engineered to meet strict tolerance requirements (0.5 mm), this machine accommodates both manual and automatic cutting and offers slitting as an available feature. The integrated quality inspection system, along with powder-coated surfaces for durability, ensures every roll meets the highest standards. With a sturdy, mild steel base and centralized lubrication, users benefit from lasting performance and low noise levels. Its high-speed capacity of 120 meters per minute supports demanding workflow environments.

FAQs of Notebook Cover Roll Rewinding Machine:

Q: How does the Notebook Cover Roll Rewinding Machine ensure precise operation?

A: Precision is achieved through a computerized PLC control system, advanced touch screen interface, high-torque AC motor with inverter, and integrated quality inspection. These combine to maintain roll tolerances within 0.5 mm and deliver consistently accurate rewinding.

Q: What are the main usage applications of this rewinding machine?

A: This machine is designed for precise rewinding of notebook cover rolls. It is ideal for manufacturers, exporters, suppliers, and wholesalers dealing with paper and stationery products, particularly in high-volume or quality-sensitive production settings.

Q: When should I choose automatic versus manual cutting?

A: Automatic cutting is ideal for high-volume, continuous operations requiring minimal interruption and uniform finish. Manual cutting is suited for shorter runs or when handling rolls with variable characteristics. The machine is flexible and supports both methods.

Q: Where is the machine typically installed and what are its space requirements?

A: Commonly installed in printing, stationery, or converting factories, its rectangular base measures 2300 mm x 1200 mm x 1400 mm. Ensure adequate space for installation, operation, and maintenance within environments maintained between 5C to 45C.

Q: What is the process for rewinding and slitting notebook cover rolls?

A: Rolls are loaded onto the 3-inch unwind core, guided and tensioned through the machine, with optional slitting performed en route. The computerized controls manage speed and precision, and the material is rewound onto the core as per required roll dimensions.

Q: What benefits does the centralized lubrication system offer?

A: Centralized lubrication ensures consistent maintenance across moving parts, reducing wear, minimizing downtime, and extending the lifespan of the machine. This also contributes to smoother operation and reduced maintenance labor.

Q: How does the machine prioritize safety during operation?

A: Safety is addressed with emergency stop buttons, safety guards, and a low-noise operation (below 75 dB). These measures promote operator safety, mitigate risk, and maintain a comfortable working environment.
