Book Cover Roll Making Machine

Name: Book Cover Roll Making Machine
Brand: YOGI ENGINEERING WORKS
Price: 65500 INR
Availability: InStock

Price 65500 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Book Cover Roll Making Machine Specification

Shape
Rectangular Base Body

Diameter
Max Roll Diameter 1000 mm Millimeter (mm)

Phase
Single/ Three Phase

Product Type
Book Cover Roll Making Machine

General Use
Manufacturing book cover rolls from paper, plastic, or laminated material

Material
Mild Steel / Stainless Steel

Weight (kg)
250 Kilograms (kg)

Computerized
Yes

Control System
PLC Control

Surface Treatment
Powder Coated, Anti-Rust

QC System
In-line quality control with sensors

Tolerance
0.2 mm Millimeter (mm)

Voltage
220V/380V Volt (v)

Dimension (L*W*H)
2300 mm x 1200 mm x 1600 mm Millimeter (mm)

Color
Industrial Blue / Custom color available

Warranty
1 Year

Operator Requirement
Single Operator

Cutting Accuracy
±0.2 mm

Working Temperature Range
5°C to 45°C

Noise Level
Less than 75 dB

Power Source
Electric

Air Pressure Requirement
6 - 8 Bar

Motor Power
2 HP - 5 HP (as per model)

Drive Type
Servo/AC Motor Drive

Installation Service
Available

Unwinder Type
Hydraulic or Pneumatic unwinding system

Production Speed
40 - 80 meters per minute

After Sales Service
Yes, with remote diagnostics support

Max Roll Width
1000 mm

Paper Thickness Range
35 GSM to 250 GSM

Cutting Type
Rotary/Shear Knife Cutting

Book Cover Roll Making Machine Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID), Cheque, Cash Advance (CA)

Supply Ability
10 Units Per Month

Delivery Time
20 Days

Main Domestic Market
All India

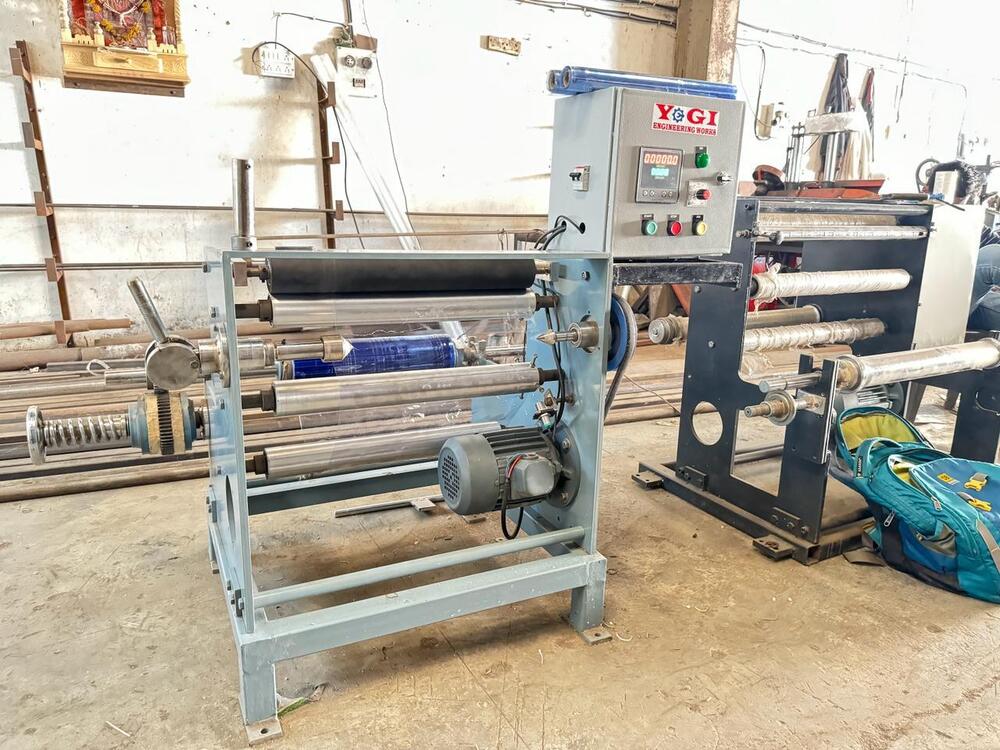

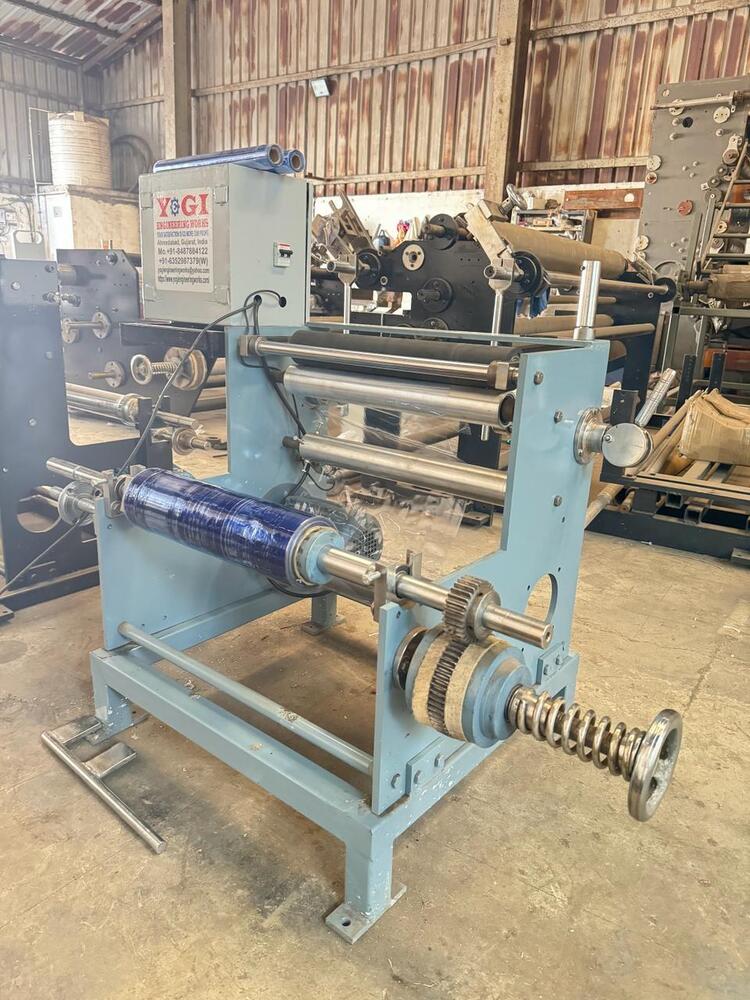

About Book Cover Roll Making Machine

TechnicalSpeciation:

Material will be Process: NotebookCover-HM Paper/Film

Roll Working Width: 16 inch-400mmStandard

Jumbo Roll Weight Capacity 30 Kg
Heavy Duty MS Plate Structure
1 No. Rubber Roll-Wrinkle Removing System
Core less Rewinding/ With Paper Core Rewinding
Motor 1 HP A.C. Motor
Control Panel 1 HP A.C.-Digital A.C. frequency Drive
(Penal Section we provide you Startand Stop Button, Length Counting meter, Speed adjustable, Sensor.)
Unwinder side Mechanical Shaft Chuck-Nut-Bearing use
Mechanical Break System for Tension Unwinder Jumbo Roll
Machine Speed: 100 meter/min.

Weight of Machine 250 Kg Approx.
Machine Available: Single/ Three Phase

Precision Cutting and High Speed

Experience remarkable precision with rotary or shear knife cutting and a tolerance of 0.2 mm. The machine operates at a fast production speed ranging from 40 to 80 meters per minute, supporting high output and consistent quality across various materials. This advanced mechanism significantly reduces wastage while maintaining accuracy, making it suitable for small to large-scale operations.

Versatile Operation and Efficient Control

Designed for versatility, this roll-to-sheet cutting machine handles paper, plastic, or laminated materials within a thickness range of 35 GSM to 250 GSM. Its PLC control system and fully automatic features ensure easy operation through a color touch-screen interface. With hydraulic or pneumatic unwinding, single-operator requirement, and in-line QC sensors, users experience streamlined workflow and minimized manual intervention.

Durability and Service Assurance

Built with powder-coated mild steel or stainless steel and an anti-rust finish, the machine promises durability even in industrial environments. Installation service is available, and after-sales support includes remote diagnostics. Additional benefits include energy efficiency, low noise, and customized motor torque, providing a reliable solution for continuous operations in manufacturing facilities.

FAQs of Book Cover Roll Making Machine:

Q: How does the Book Cover Roll Making Machine ensure precise and consistent cutting?

A: The machine employs rotary or shear knife cutting mechanisms combined with advanced servo or AC motor drives. With a cutting accuracy of 0.2 mm and an in-line quality control system featuring sensors, it consistently produces rolls with precise dimensions and minimal error.

Q: What types of materials and thicknesses can this machine process?

A: This machine is suitable for paper, plastic, or laminated materials within a thickness range of 35 GSM to 250 GSM. Its versatility accommodates various production needs, from lightweight papers to heavier laminated sheets.

Q: When is installation and after-sales service provided?

A: Installation service is available at the customers site upon delivery. Comprehensive after-sales service includes support via remote diagnostics, troubleshooting, and timely intervention to ensure smooth machine operation.

Q: Where is the Book Cover Roll Making Machine most effectively used?

A: This machine is ideal for use in manufacturing units, commercial printing establishments, and packaging industries where high-speed and high-quality book cover roll production is needed. It is suitable for exporters, suppliers, and wholesalers based in India and internationally.

Q: What is the process for roll-to-sheet cutting in this machine?

A: The machine unwinds material using a hydraulic or pneumatic system, then feeds it through precision cutting units. Controlled by a PLC system, the material is cut to specific lengths, inspected by sensors, and automatically stacked or rolled for further processing.

Q: How does single operator usage benefit production efficiency?

A: The design requires just one operator, reducing labor costs and simplifying supervision. Automation, touch-screen control, and remote support further streamline production and enable high-capacity output of 10003000 rolls per 8-hour shift.

Q: What are the key benefits of using this Book Cover Roll Making Machine?

A: Key benefits include high-speed production, precision cutting, easy operation via color HMI, energy efficiency, low noise (<75 dB), robust construction, and in-line quality control. These features enhance productivity and product quality, making the machine a valuable asset for manufacturing facilities.
