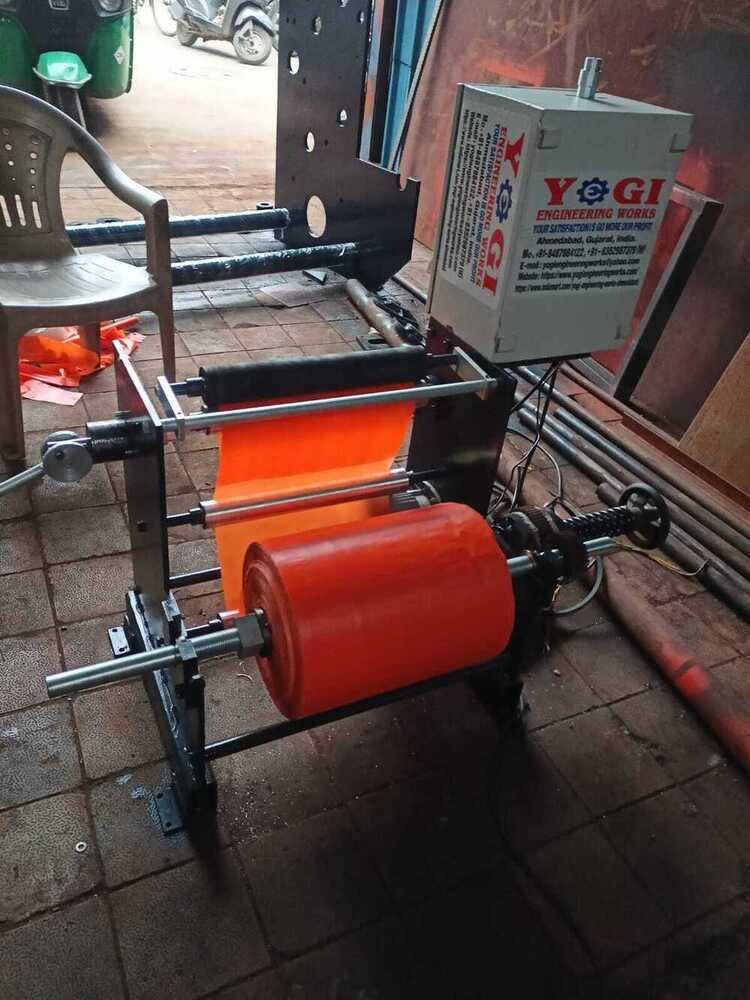

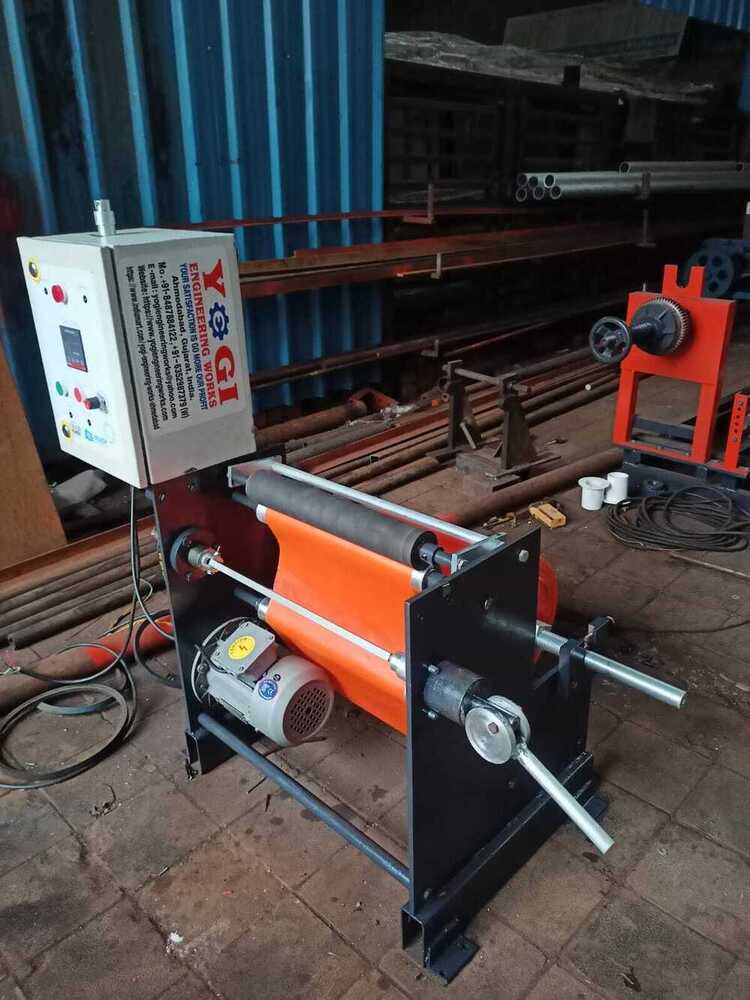

Notebook Cover Paper Making Machine

Name: Notebook Cover Paper Making Machine
Brand: YOGI ENGINEERING WORKS
Price: 62500 INR
Availability: InStock

Price 62500 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Notebook Cover Paper Making Machine Specification

Diameter
320 mm Millimeter (mm)

Phase
Single

Torque
150 Nm N-cm

Shape
Rectangular

Product Type
Notebook Cover Paper Making Machine

General Use
Used for manufacturing notebook cover papers efficiently

Material
Mild Steel

Type
Other

Weight (kg)
300 Kilograms (kg)

Computerized
Yes

Automatic
Yes

Control System
PLC Control

Surface Treatment
Powder coated

QC System
ISO certified quality check

Tolerance
0.05 mm Millimeter (mm)

Voltage
240 Volt (v)

Dimension (L*W*H)
2900mm x 1200mm x 1500mm Millimeter (mm)

Color
Industrial Blue / Custom

Lubrication
Automatic

Operator Requirement
1 person

Max Reel Diameter
1,000 mm

Max Paper Width
680 mm

Service Support
On-site and remote available

Production Speed
55 meters/min

Drive System
AC motor with VFD

Installation Time
5-7 days

Operating Noise Level
< 75 dB

Paper GSM Range
70-350 GSM

Working Pressure
0.6 MPa

Emergency Stop
Available

Cutting Accuracy
±1 mm

Power Consumption
5.5 kW

Notebook Cover Paper Making Machine Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
10 Units Per Month

Delivery Time
20 Days

Main Domestic Market
All India

About Notebook Cover Paper Making Machine

TechnicalSpeciation:

Material will be Process: NotebookCover-HM Paper/Film

Roll Working Width: 16 inch-400mmStandard

Jumbo Roll Weight Capacity 30 Kg
Heavy Duty MS Plate Structure
1 No. Rubber Roll-Wrinkle Removing System
Core less Rewinding/ With Paper Core Rewinding
Motor 1 HP A.C. Motor
Control Panel 1 HP A.C.-Digital A.C. frequency Drive
(Penal Section we provide you Startand Stop Button, Length Counting meter, Speed adjustable, Sensor.)
Unwinder side Mechanical Shaft Chuck-Nut-Bearing use
Mechanical Break System for Tension Unwinder Jumbo Roll
Machine Speed: 100 meter/min.

Weight of Machine 250 Kg Approx.
Machine Available: Single/ Three Phase

High-Speed, Automated Production

Experience fast, precise notebook cover paper manufacturing with this machines advanced automation features. Computerized PLC control and touch screen operation simplify processes and enhance accuracy, supporting production speeds up to 55 meters per minute. Automated lubrication and quick sheet cutting increase efficiency, requiring only one operator for smooth functioning.

Robust Design & Quality Assurance

Constructed from powder-coated mild steel, the machine offers durability and corrosion resistance for long-term use. It meets ISO-certified quality standards and includes a comprehensive QC system. Available in industrial blue or custom colors, its compact rectangular shape fits efficiently within production spaces.

User-Friendly & Versatile Operation

Installable within 57 days, this machine handles various paper types from 70 to 350 GSM, and up to 2000 sheets per hour. The touch screen and PLC control system provide easy operation and quick adjustments. Emergency stop functions and both on-site and remote support ensure safe and reliable performance for exporters and manufacturers across India.

FAQs of Notebook Cover Paper Making Machine:

Q: How is the installation process managed for the Notebook Cover Paper Making Machine?

A: The installation typically takes 5 to 7 days and is overseen by the manufacturers expert technicians, ensuring all components are set up correctly. On-site service support is available for a seamless setup.

Q: What paper specifications does the machine accommodate during production?

A: This machine is compatible with paper weights from 70 GSM to 350 GSM and can process reels up to 680 mm wide with a maximum diameter of 1,000 mm, making it versatile for different notebook cover requirements.

Q: When is maintenance required for optimal machine performance?

A: Scheduled maintenance is minimal, thanks to the automatic lubrication system. Regular checks should be performed as per the ISO-certified QC guidelines provided, but the machine is designed for energy-efficient and low-maintenance operation.

Q: Where can manufacturers and suppliers use this machine?

A: The machine is suitable for installation in industrial settings such as paper mills, notebook manufacturing units, and packaging facilities. Its compact footprint allows flexibility in placement within various production environments.

Q: What benefits does the computerised and automatic operation offer?

A: Automated features, including PLC control and touch screen operation, reduce the need for manual intervention, enhancing precision and consistency. The single-operator requirement lowers labor costs and increases operational safety with the emergency stop function.

Q: How is cutting accuracy ensured during the notebook cover production process?

A: Equipped with precise control systems, the machine achieves cutting accuracy of 1 mm, ensuring each sheet meets the required standards. Tolerances are tightly monitored through the ISO-certified QC system for consistently high product quality.

Q: What makes this machine energy efficient and suited for long-term operation?

A: Utilizing a 5.5 kW AC motor with VFD, the machine optimizes energy use while maintaining high production speeds. Its powder-coated mild steel frame resists corrosion, and automatic lubrication reduces downtime, supporting reliable, cost-effective long-term performance.
