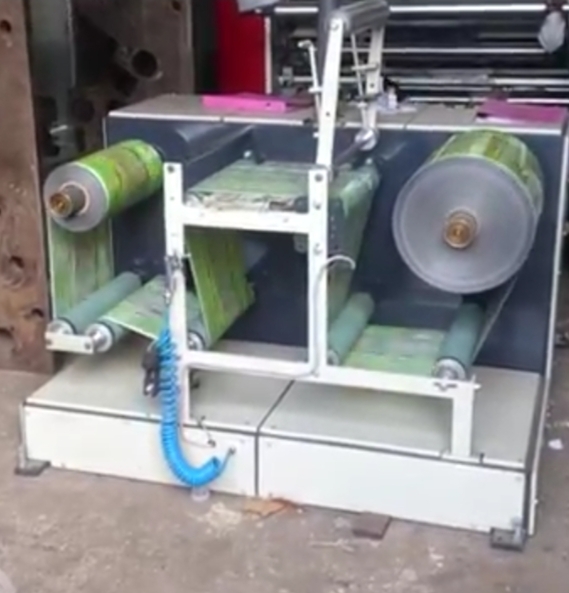

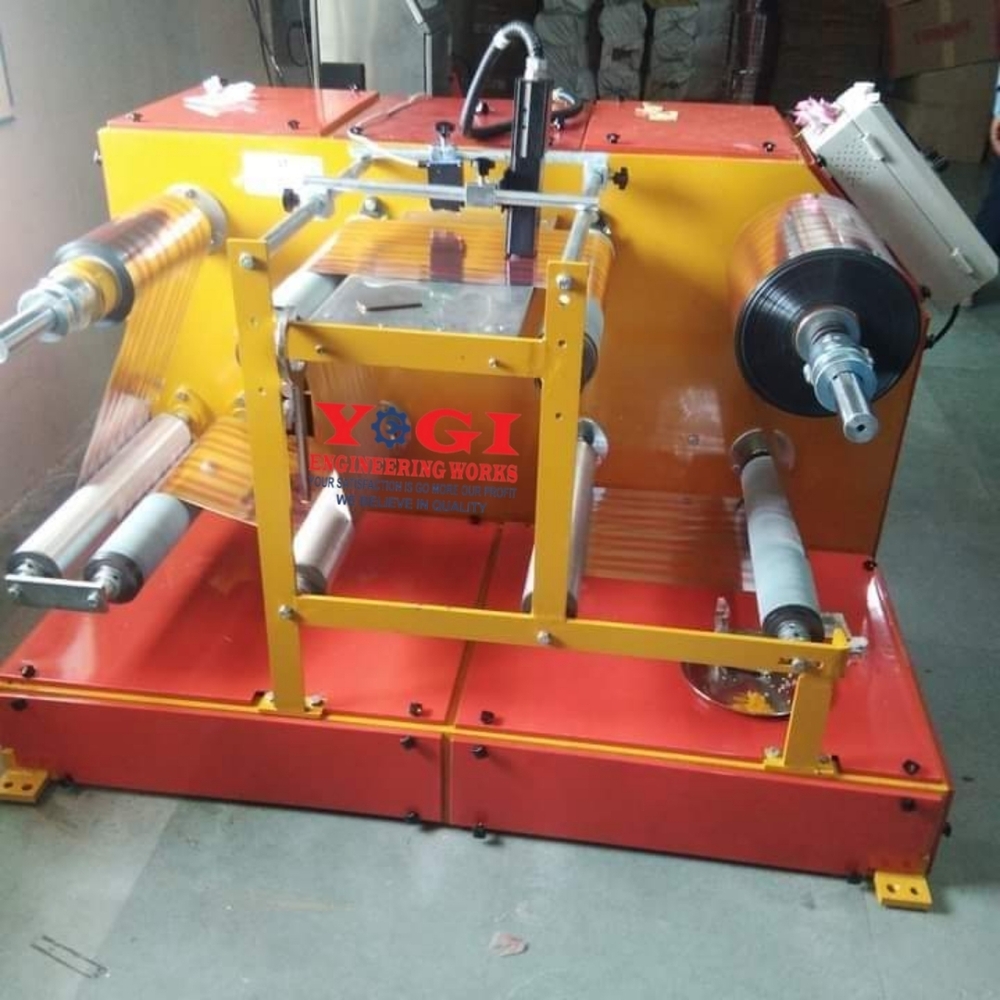

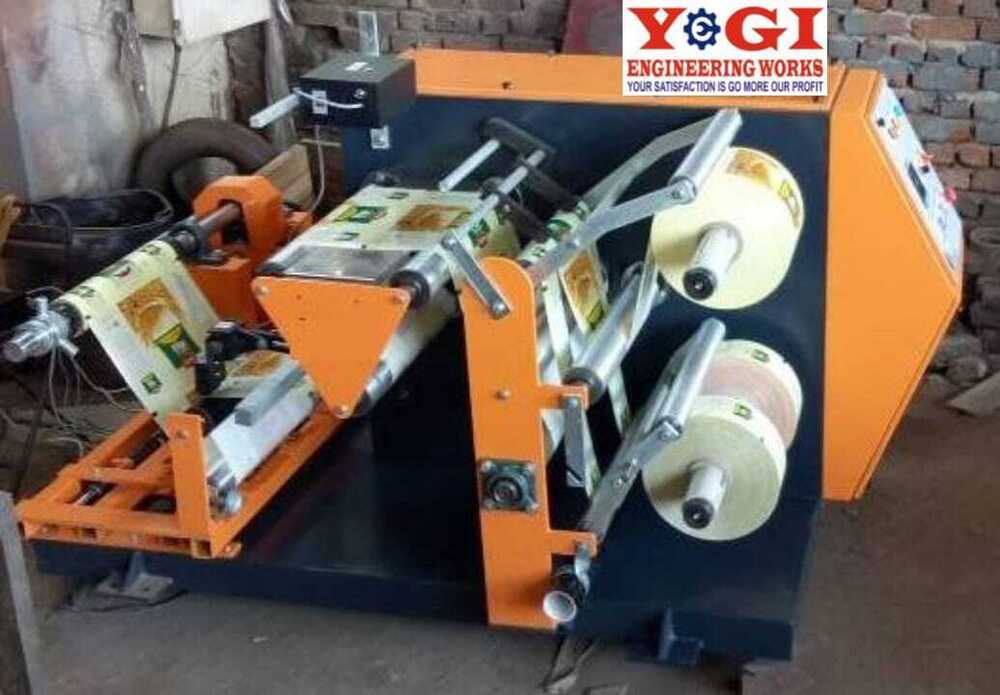

Unwinder Rewinder Machine

Name: Unwinder Rewinder Machine
Brand: YOGI ENGINEERING WORKS
Price: 175000 INR
Availability: InStock

Price 175000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Unwinder Rewinder Machine Specification

Phase
Three

Shape
Rectangular

Product Type
Unwinder Rewinder Machine

General Use
Unwinding and rewinding paper, film, foil, or labels

Material
Mild Steel Body with SS Rollers

Type
Other

Weight (kg)
1000 Kilograms (kg)

Computerized
No

Automatic
Yes

Control System
AC Drive Based

Surface Treatment
Powder Coated

QC System
Inbuilt Inspection

Voltage
440 Volt (v)

Color
Industrial Grey

Speed Adjustment
Variable Frequency Drive (VFD)

Noise Level
<72 dB

Installation
On-site support available

Packaging
Standard Export Packing Available

Web Alignment
Automatic Web Aligner

Drive Motor Type
Heavy Duty Induction Motor

Operator Panel
Digital Control Panel

Max Roll Width
650 mm

Safety Features
Emergency Stop, Overload Protection

Guide System
Edge Guide with Sensors

Main Shaft Type
Expandable Shaft

Unwinder Rewinder Machine Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID), Cheque, Cash Advance (CA)

Supply Ability
5 Units Per Month

Delivery Time
20 Days

Main Domestic Market
All India

About Unwinder Rewinder Machine

TechnicalSpeciation:

Material will be Process: LD, PP, Film, Pouch, Foil etc.

Maximum Roll Width: 150mm, 450mm, 700mm & 1000mm Standard

Unwinder/Rewinder Roll Dia- Up to 300mm

Jumbo Roll Weight Capacity 35 Kg
Heavy Duty MS Plate Structure
Motor 2 HP A.C. Motor
Control Panel 2 HP A.C.-Digital A.C. frequency Drive
(Penal Section we provideyou Start and Stop Button, Length Counting meter, Speed adjustable, Sensor& Emergency Stop.)
Cantilever Type Design Our Machine Easily Operating System
Any make Printer (Batch Coding) use Our Machine
Encoder Feedback
Mechanical Shaft Unwinder side Chuck-Nut-Bearing use
Mechanical Shaft Rewinder side Chuck-Nut-Bearing use
Mechanical Break System for Tension Unwinder Jumbo Roll
Web (Edge) Guide System-Hydraulic- (This machine so that you can take properrewinding and finishing for Your Roll.)
All Side Vertical Coveredfrom M.S. Sheet
Heavy Duty Chain Drive System
Rewinding Speed: 120 MPM.
Weight of Machine 800 Kg Approx.
Machine Available: Three Phase

Precision Unwinding and Rewinding

Engineered for high accuracy, the machine incorporates an edge guide system with sensors and automatic web alignment, ensuring materials like paper, film, foil, or labels run steadily and precisely. Its adjustable electronic torque control provides optimal tension, contributing to consistent roll formation and minimal material waste.

User-Friendly Digital Controls

Operation is straightforward with a digital control panel offering real-time adjustments and monitoring. Variable Frequency Drive (VFD) allows flexible speed management, facilitating smooth transitions between tasks and adaptability to production requirements.

Installation and Support

Installation is backed by on-site support, ensuring seamless setup and operator training. Comprehensive documentation, including machine drawings, is available on request, making integration into existing manufacturing systems hassle-free.

FAQs of Unwinder Rewinder Machine:

Q: How does the automatic web alignment system enhance machine performance?

A: The automatic web aligner uses sensors to continuously adjust material positioning, minimizing misalignment and ensuring uniform winding or rewinding. This leads to superior end product quality and reduced material wastage.

Q: What safety features are built into the Unwinder Rewinder Machine?

A: The machine includes emergency stop buttons and overload protection, which guard against unexpected incidents. Its robust frame and inbuilt inspection system further contribute to operational safety and reliability.

Q: When is the ideal time to use the digital control panel?

A: Operators should use the digital control panel during machine setup, speed adjustments, and throughout production to monitor and modify parameters for optimal performance and material handling.

Q: Where is this machine commonly installed?

A: This machine is engineered for industrial facilities, such as paper or label converting plants, packaging units, and manufacturing sites that require efficient web handling. On-site installation support is available throughout India.

Q: What types of material can be processed with this machine?

A: It can efficiently unwind and rewind paper, film, foil, and label rolls with a maximum width of 650 mm and customizable core diameter to suit various production requirements.

Q: How does the variable frequency drive (VFD) provide benefits in operation?

A: VFD enables precise speed adjustments, allowing rapid or gentle unwinding and rewinding based on material type. This flexibility maximizes process efficiency and protects sensitive materials from damage.
