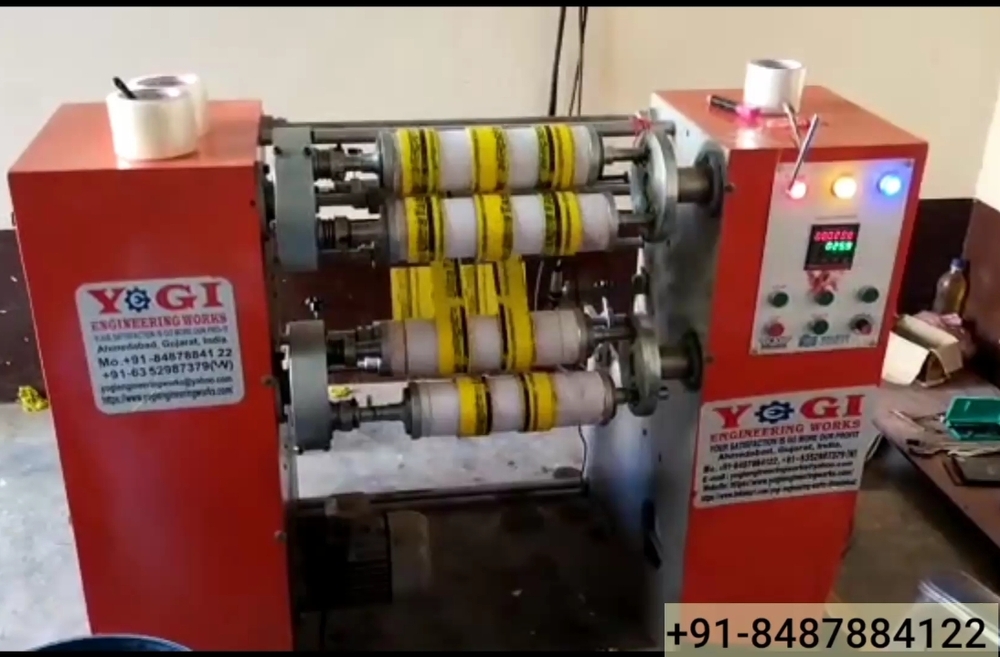

Tape Slitting Machine

About Tape Slitting Machine

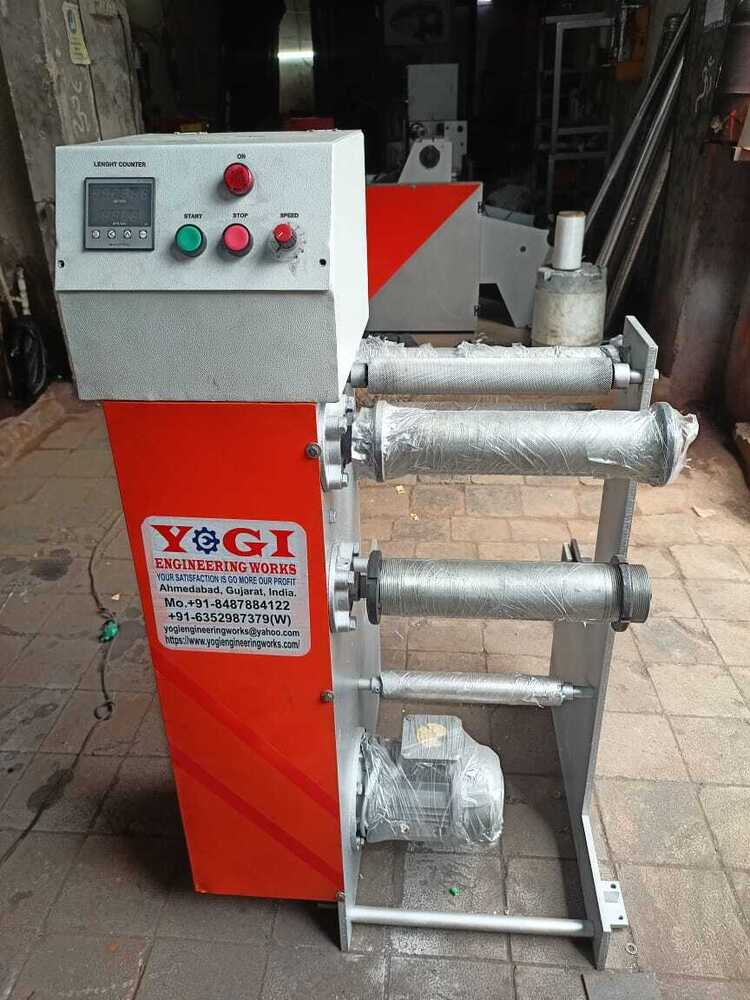

Mini BOPP Tape Slitting Rewinding Machine

MS Plate Heavy Duty Machine Structure
Maximum Roll Width: 300mm Standard & 600mm Also Available
Material will be Process Bopp Cello Tape
Motor 1 HP A.C. Motor
Control Panel 1 HP A.C. frequency Drive
(Penal Section we provide you Auto Start and Stop Button, Length Countingmeter, Speed adjustable-Sensor.)
Jumbo Roll Capacity 20 Kg
All Side Vertical Covered from M.S. Sheet
Rewinding Speed: 100 MPM.
Production Capacity Approximately:
15-25 Box per day 9 Hours Working (65 mtr roll)
Weight of Machine 300 Kg Approx.
Machine Available: Single/ Three Phase

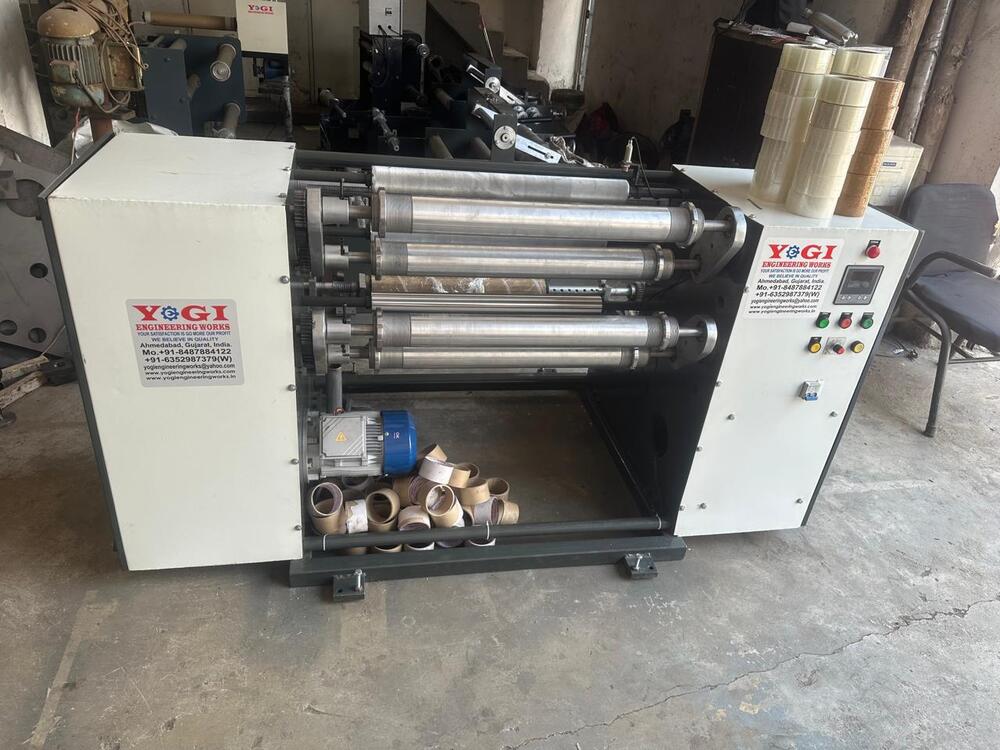

1350mm Jumbo BOPP Tape Slitting Rewinding Machine

MS Plate Heavy Duty Machine Structure
Maximum Roll Width: 1350mm Standard
Material will be Process Bopp Cello Tape
Motor 5 HP A.C. Motor
Control Panel 5 HP A.C. frequency Drive
(Penal Section we provide you Start and Stop Button, Length Counting meter,Speed adjustable-Sensor.)
Mechanical Shaft Unwinder side Chuck-Nut-Bearing use
Jumbo Roll Capacity 250 Kg
Mechanical Break System for Tension Unwinder Jumbo Roll
Rewinding Mechanical Shaft-4 No. Shaft
Rewinding Shaft Automatic Turret System Motor with Gear Box
Rewinding Side Clutch System
All Side Vertical Covered from M.S. Sheet
Rewinding Speed: 100 MPM.
Production Capacity Approximately:
40-50 Box per day 9 Hours working (65 mtr roll)
Weight of Machine 1000 Kg Approx.
Machine Available: Three Phase
