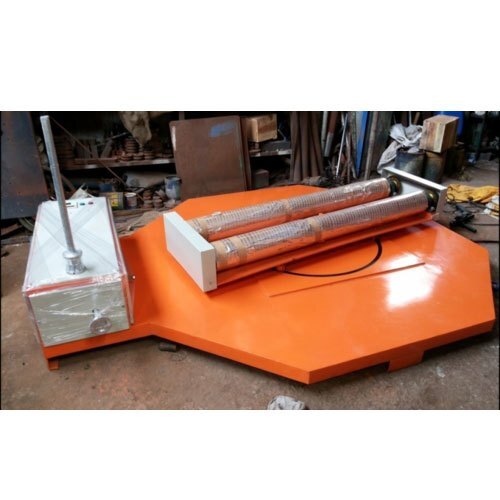

Roll to Stretch Wrapping Machine

Name: Roll to Stretch Wrapping Machine
Brand: YOGI ENGINEERING WORKS
Price: 85000 INR
Availability: InStock

Price 85000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Roll to Stretch Wrapping Machine Specification

Phase
Single/Three phase

Diameter
Suitable up to 500 mm Millimeter (mm)

Shape
Cylindrical roller bed

Product Type
Roll to Stretch Wrapping Machine

General Use
Wrapping rolls with stretch film for protection and packaging

Material
Mild Steel

Type
Other

Weight (kg)
Approx. 680 kg Kilograms (kg)

Computerized
Yes

Touch Screen
Yes

Control System
PLC Control

Surface Treatment
Powder Coated

QC System
Standard in-house quality check

Tolerance
0.5 mm Millimeter (mm)

Voltage
220V/380V, 50/60Hz Volt (v)

Dimension (L*W*H)
2200 x 1350 x 2000 mm Millimeter (mm)

Color
Industrial grey/yellow as per image

Wrapping Speed
Adjustable as per settings

Film Thickness
17-35 microns

Operating Temperature
0°C to 40°C

Film Width
500 mm

Max Roll Weight
120 kg

Noise Level
<70 dB

Power Consumption
1.5 kW

Safety Features
Emergency stop, interlock system, overload protection

Maintenance Requirement
Low, easy access design

Drive System
Electric motor-driven conveyor

Installation
Floor mounted, ready to use

Wrapping Material
LLDPE stretch film

Roll to Stretch Wrapping Machine Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
10-15 Days

Main Domestic Market
All India

About Roll to Stretch Wrapping Machine

TechnicalSpeciation:

Â Â Â Â Â Â

Heavy Duty MS Plate Structure
Material: Box, Any Material Roll Foam etc.
(Roll to Stretch Wrapping-Packaging)
Roll Working Width: 700mm
Roll Dia: Upto 400mm
Material Weight Capacity 80 Kg
2 Rubber Roller
Mechanical Unwinding Shaft with Chuck-Nut-Bearing use
1 HP Ac Motor
1 HP Ac Panel
(Penal Section we provide you Startand Stop Button, Length Counting meter, Speed adjustable, Sensor.)

One Side Vertical Covered from M.S. Sheet
Weight of Machine 300 Kg Approx.
Machine Available: Three PhaseÂ Â Â Â Â Â Â Â

Advanced Automation for Superior Wrapping

This stretch wrapping machine leverages a computerized PLC control system and adjustable wrap cycles, enabling precise, fully automatic operation. The user-friendly touch-screen interface simplifies settings adjustments, while the electric motor-driven conveyor ensures consistent, high-speed wrapping, supporting up to 30 rolls per hour. Installation is simple with its floor-mounted ready-to-use design.

Safety and Reliability at the Forefront

Engineered with emergency stop, interlock, and overload protection, the machine meets strict safety standards. Its powder-coated mild steel construction ensures long-term durability, while in-house quality checks uphold performance. With low maintenance requirements and an easy-access design, daily operations remain efficient and safe.

Versatile Operation for a Range of Applications

Designed for flexibility, the machine handles roll diameters up to 500 mm and uses commonly available LLDPE film. Suitable for both single and three-phase power, it fits diverse industrial settings across India. Its energy-efficient operation, customizable torque, and minimal noise level (<70 dB) make it practical for continuous use.

FAQs of Roll to Stretch Wrapping Machine:

Q: How does the Roll to Stretch Wrapping Machine operate?

A: The machine uses an electric motor-driven conveyor and a computerized PLC system to automatically wrap rolls in LLDPE stretch film. Operators set parameters through the touch screen, adjust wrapping speed and cycles, and the machine securely wraps each roll as it moves along the cylindrical roller bed.

Q: What are the key benefits of using this automatic roll wrapping machine?

A: This machine boosts productivity by wrapping up to 30 rolls per hour, reduces labor costs, and ensures consistent, protective packaging. With robust safety features, low noise, and easy maintenance, it offers a reliable and user-friendly solution for safeguarding rolls during storage and transport.

Q: Where can this machine be installed and what are its space requirements?

A: The floor-mounted design enables easy installation in most industrial environments. With approximate dimensions of 2200 x 1350 x 2000 mm, the machine requires a flat, stable surface and can fit into standard warehouse or production floor spaces.

Q: What materials and roll sizes can this machine wrap?

A: It is engineered for wrapping cylindrical rolls up to 500 mm in diameter and 120 kg weight, using LLDPE stretch film with a thickness between 17 and 35 microns. It is compatible with a wide range of roll materials found in textile, paper, or film industries.

Q: How often does the machine need maintenance, and is it user-friendly in this regard?

A: Thanks to its low-maintenance design and easy access to main parts, routine checks and general upkeep are straightforward. Operators will find maintenance tasks minimal, ensuring the machine remains in optimal condition for continuous operation.

Q: What safety features are integrated to protect operators and rolls during use?

A: The machine includes an emergency stop button, interlock safety system, and overload protection to prevent accidents. These features safeguard both operators and the integrity of the rolls during high-speed, automatic wrapping operations.
