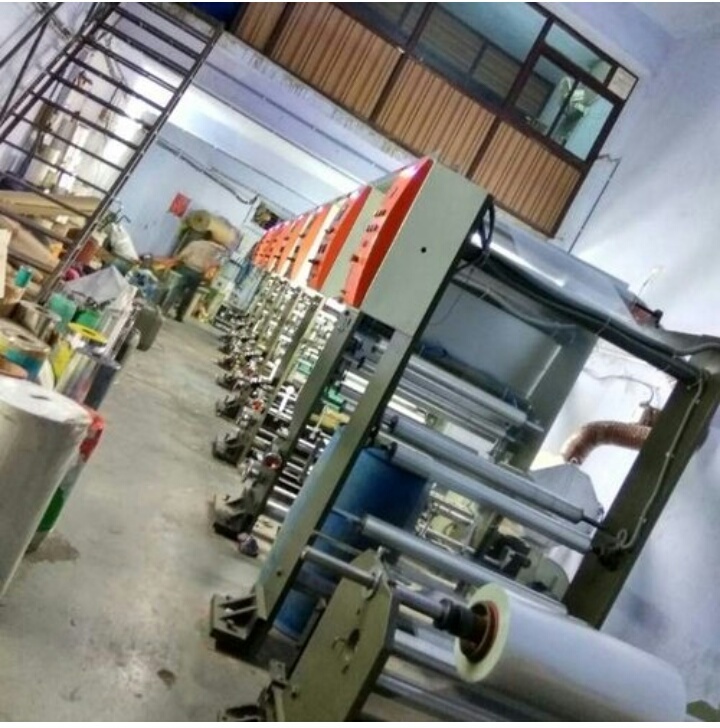

Multi Color Rotogravure Printing Machine

Name: Multi Color Rotogravure Printing Machine
Brand: YOGI ENGINEERING WORKS
Price: 775000 INR
Availability: InStock

Price 775000 INR/ Unit

Get a Price/Quote

MOQ : 01 Unit

Multi Color Rotogravure Printing Machine Specification

Shape
Rectangular body, modular design

Diameter
Cylinder: 100-300 mm (optional)

Phase
Three

Torque
High-torque motor drive

Product Type
Multi Color Rotogravure Printing Machine

General Use
Industrial printing on flexible packaging materials

Material
Heavy-duty Mild Steel Structure

Type
Rotogravure

Capacity
Up to 120 meters/minute (subject to model configuration)

Weight (kg)
1000 Kilograms (kg)

Computerized
Yes

Automatic
Yes

Touch Screen
Yes, integrated touch panel

Control System
PLC Control

Surface Treatment
Polished

QC System
Online video inspection system

Tolerance
0.1 mm

Drawing
CAD Drawing Available

Voltage
380V / 50Hz (Customizable)

Dimension (L*W*H)
7000 x 2200 x 2600 mm (can vary with model)

Feature
High speed, accurate registration, energy-efficient dryer

Color
Multi-color (standard: blue/white, can be customized)

Web Guide System
Automatic edge guide with photoelectric sensor

Unwind/Rewind System
Auto tension control, shaft/shaftless

Max Print Repeat
1000 mm

Drying System
Hot air recirculating dryer

Substrate
PET, BOPP, LDPE, HDPE, Aluminum Foil, Paper

Printing Width
600 mm to 1500 mm

Operator Interface
User-friendly HMI

Min Print Repeat
300 mm

Printing Station
Available in 4/6/8/10 colors

Noise Level
<80 dB

Ink Type
Solvent or water-based gravure inks

Max Unwind/Rewind Diameter
800 mm

Registration Accuracy
±0.15 mm

Roller Type
Steel/Chrome plated

Multi Color Rotogravure Printing Machine Trade Information

Minimum Order Quantity
01 Unit

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
1 Unit Per Month

Delivery Time
60 Days

Main Domestic Market
All India

About Multi Color Rotogravure Printing Machine

Yogi Engineering Works Rotogravure Printing Machine is consisting of unwinding units, printing stations, and drying chambers fitted with blowers on individual printing stations.

Rewinding station fitted with friction type mechanical clutch system and each printing station has vertical and horizontal registration arrangement in this machine.

Registration can be adjusted during the running machine. The doctor blade assembly is string loaded provided with lateral oscillation to increase the life of Machine printing cylinders.

Our Rotogravure Printing Machines are available in a wide range of web width and color configurations, from single color to 10 colors. Details can be furnished on request.

Our Rotogravure Printing Machines are higher efficiency machines with options of front & reverse printing facility.

Our Printing Machine is designed & constructed to meet high standards of flexible printing.

The drying system is designed to month high-speed printing by printing dryers with heaters & blowers in Rotogravure Printing Machine

The machine can be provided with various control systems with web aligner.

Advanced Printing Technology

This rotogravure machine boasts high-speed, accurate multi-color printing, suitable for industrial-scale packaging jobs. Its modular design and advanced registration control ensure consistency and vibrant output across various substrates such as PET, BOPP, and foil.

User-Friendly and Automated Operation

Equipped with an intuitive touch-screen HMI interface and computerized PLC controls, operators enjoy seamless setup and monitoring. The automatic edge guide system and tension controls facilitate optimal alignment and efficiency during long production runs.

Versatile Substrate Compatibility

Supporting a wide range of materials like LDPE, HDPE, paper, and aluminum foil, the machine adapts easily to diverse packaging needs. The integrated drying system further enhances performance with rapid ink curing and minimal energy use.

FAQs of Multi Color Rotogravure Printing Machine:

Q: How does the Multi Color Rotogravure Printing Machine maintain precise registration during high-speed production?

A: The machine utilizes a PLC control system with an automatic web guide and photoelectric sensors to ensure registration accuracy within 0.15 mm, even at speeds up to 120 meters per minute. This setup minimizes misalignment and maintains print quality on varied substrates.

Q: What is the process for changing print colors or stations on this machine?

A: Changing colors or printing stations is straightforward due to its modular design. Operators can easily upgrade between 4, 6, 8, or 10 color configurations, and a user-friendly touch panel HMI streamlines adjustments and setup for new print jobs.

Q: When is it recommended to use solvent-based versus water-based gravure inks?

A: Solvent-based inks are ideal for non-porous substrates like PET or aluminum foil, offering superior adhesion and durability. Water-based inks are recommended for paper or when environmental considerations are prioritized, as they reduce VOC emissions.

Q: Where is this rotogravure machine typically installed and used?

A: This machine is suited for large-scale industrial printing facilities, commonly found in the packaging sector. Its robust construction and customizable dimensions enable it to fit diverse plant layouts across India and for export markets.

Q: How does the drying system enhance printing quality and efficiency?

A: The hot air recirculating dryer rapidly cures gravure inks, preventing smudging and improving clarity. This energy-efficient system enables continuous, high-speed production while maintaining consistent output quality across all print runs.

Q: What are the benefits of the integrated online video inspection system?

A: The online video inspection system continuously monitors print output for defects or inconsistencies, allowing operators to make real-time corrections. This feature reduces waste and improves overall productivity and print reliability.
