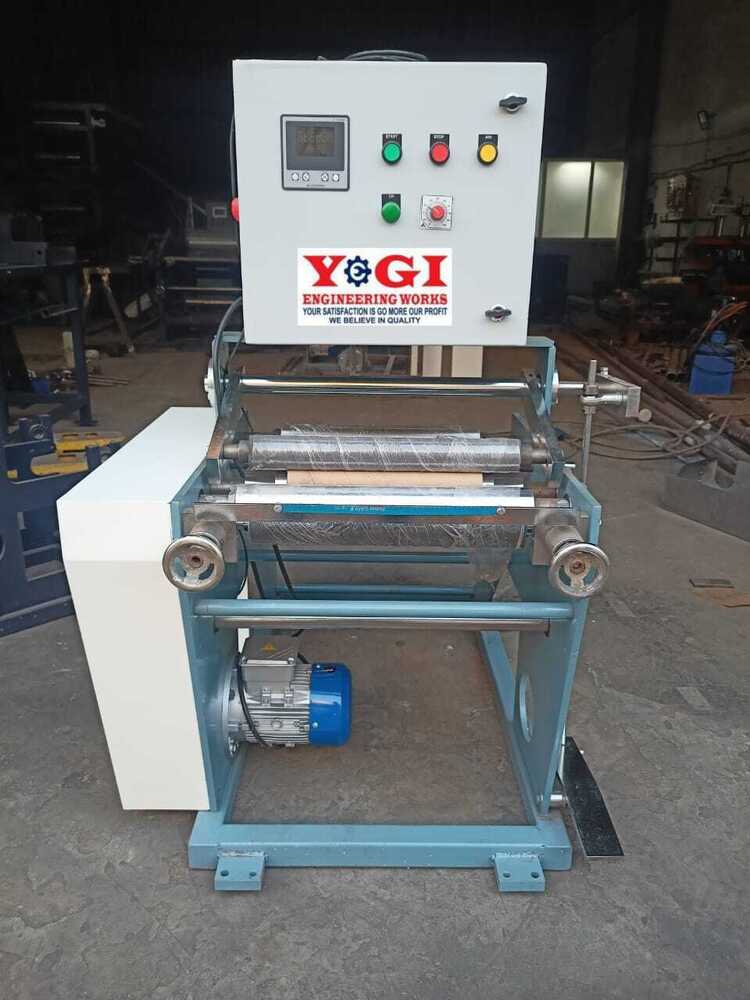

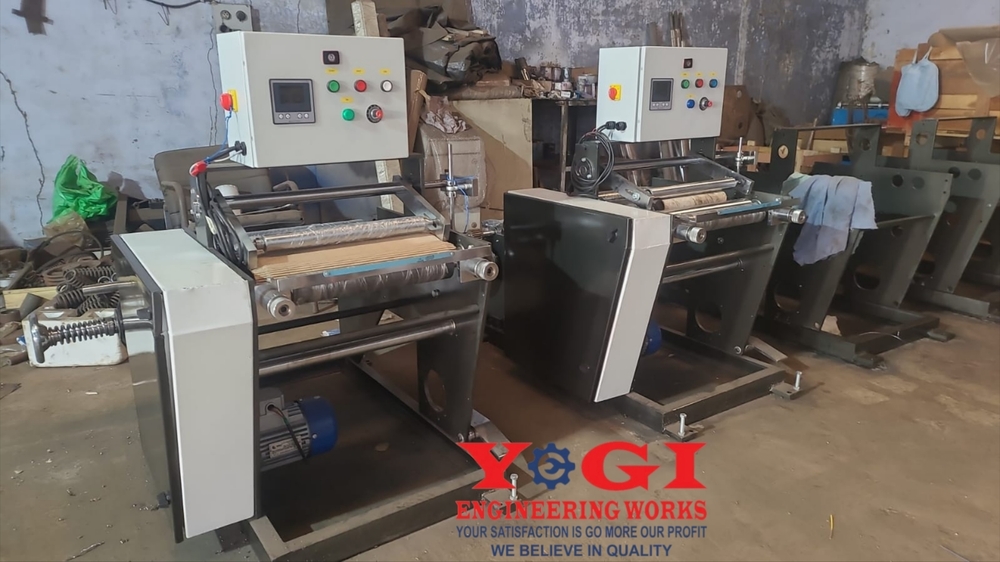

Foil Winding Machine

About Foil Winding Machine

Technical Speciation:

ïïïïï

Maximum Roll Width: 300mm Standard & 500mm Also Available
Material will be Process Aluminium House Foil, Butter Paper
Material to be rewind:-10 to 20 micron

Jumbo Roll Weight Capacity Upto 100 Kg
Heavy Duty MS Plate Structure
Drum Roller, Guide Roll
Rubber Roll-Wrinkle Removing System
Rubber Roll Auto adjust up and down System
One Side Vertical Covered from M.S. Sheet
Motor 1 HP A.C. Motor
Control Panel 1 HP A.C.-Digital A.C. frequency Drive
(Penal Section we provide you Startand Stop Button, Length Counting meter, Speed adjustable, Sensor.)
Unwinder side Mechanical Shaft Chuck-Nut-Bearing use
Mechanical Break System for Tension Unwinder Jumbo Roll
Heavy Duty Rubber Belt Taming Pulley System
Rewinding Speed: 100 MPM.
Production Capacity Approximately:ï 400to 500 roll per day (72 mtr roll)
Weight of Machine 400 Kg Approx.
Machine Available: Single/ Three Phase
