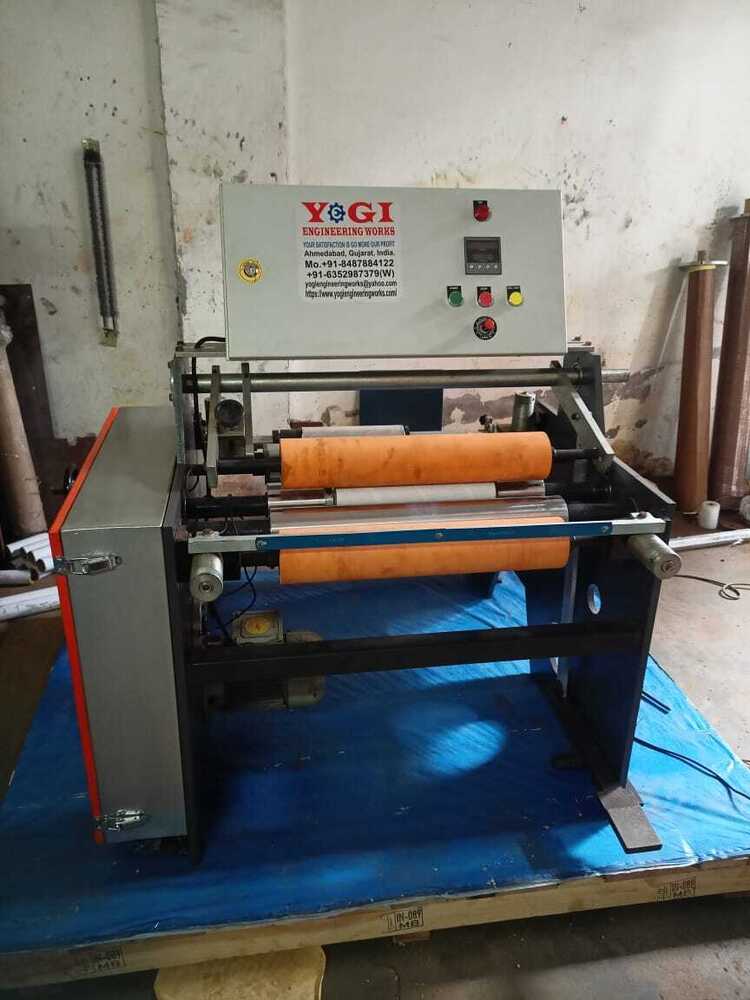

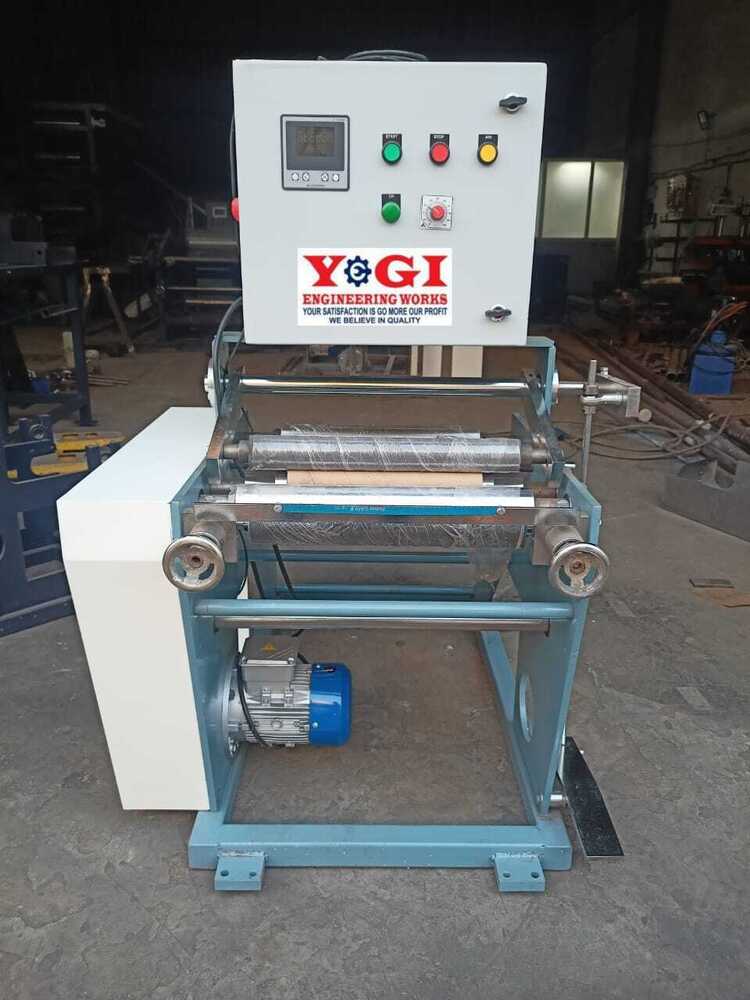

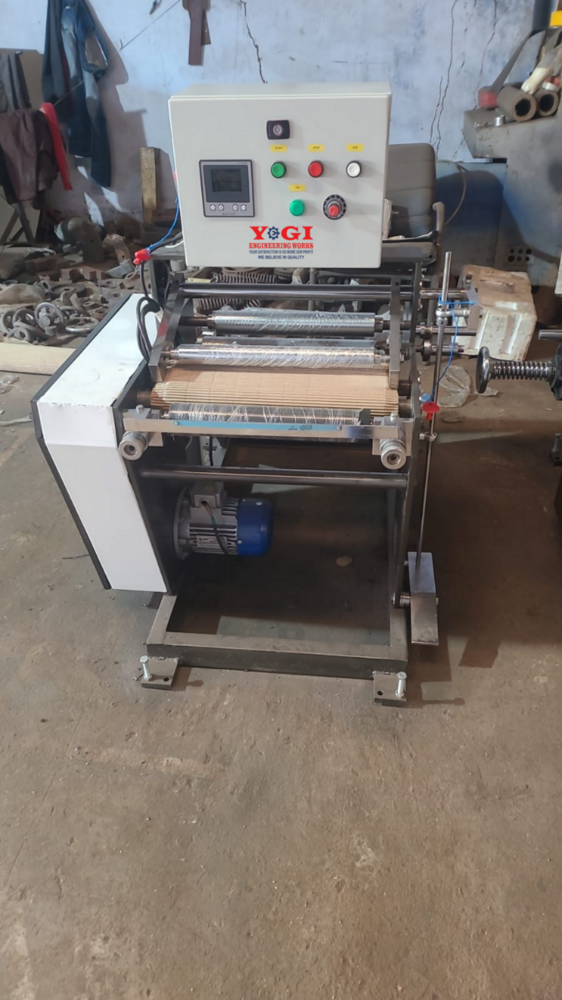

Foil Cutting Machines

Name: Foil Cutting Machines
Brand: YOGI ENGINEERING WORKS
Price: 110000.00 INR
Availability: InStock

Price 110000.00 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Foil Cutting Machines Specification

Diameter
Up to 600 mm Millimeter (mm)

Torque
18 Nm N-m

Shape
Rectangular

Phase
Single

Product Type
Foil Cutting Machine

General Use
For Cutting Various Types of Foil Materials

Material
Mild Steel, Stainless Steel

Type
Other

Capacity
2500 Rolls/Day Pcs/hr

Weight (kg)
500 Kilograms (kg)

Computerized
Yes

Control System
PLC Based

Surface Treatment
Powder Coated

QC System
Automatic Quality Control, In-line Inspection

Tolerance
0.5 mm Millimeter (mm)

Voltage
240 Volt (v)

Dimension (L*W*H)
2600 mm x 1200 mm x 1500 mm Millimeter (mm)

Color
Machine Grey

Air Pressure Requirement
6 Bar

Installation
On-site Setup Available

Blade Material
High Speed Steel

Operating Temperature
0-45°C

Max Roll Width
1200 mm

Noise Level
<70 dB

Humidity Tolerance
Up to 90% RH

Operator Interface
Digital Display

Power Consumption
3.5 kW

Safety Features
Emergency Stop, Overload Protection

Cutting Speed
100-120 m/min

Foil Cutting Machines Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
5 Units Per Month

Delivery Time
15 Days

Sample Available
Yes

Main Domestic Market
All India

About Foil Cutting Machines

Technical Speciation:

ïïïïï

Maximum Roll Width: 300mm Standard & 500mm Also Available
Material will be Process Aluminium House Foil, Butter Paper
Material to be rewind:-10 to 20 micron

Jumbo Roll Weight Capacity Upto 100 Kg
Heavy Duty MS Plate Structure
Drum Roller, Guide Roll
Rubber Roll-Wrinkle Removing System
Rubber Roll Auto adjust up and down System
One Side Vertical Covered from M.S. Sheet
Motor 1 HP A.C. Motor
Control Panel 1 HP A.C.-Digital A.C. frequency Drive
(Penal Section we provide you Startand Stop Button, Length Counting meter, Speed adjustable, Sensor.)
Unwinder side Mechanical Shaft Chuck-Nut-Bearing use
Mechanical Break System for Tension Unwinder Jumbo Roll
Heavy Duty Rubber Belt Taming Pulley System
Rewinding Speed: 100 MPM.
Production Capacity Approximately:ï 400to 500 roll per day (72 mtr roll)
Weight of Machine 400 Kg Approx.
Machine Available: Single/ Three Phase

Cutting-Edge Efficiency and Throughput

Achieve unprecedented productivity with a capacity of 2,500 rolls per day and rapid operation speeds. The advanced control system streamlines your process, ensuring each cut is clean, swift, and consistent. From installation to day-to-day use, this machine simplifies foil processing in high-demand environments.

Advanced Safety and User-Friendly Operation

Equipped with emergency stop, overload protection, and a digital touch screen interface, our foil cutting machine prioritizes operator safety and straightforward usability. The PLC-based controls and automatic inspection guarantee optimal performance while reducing the risk of operational errors.

Durable Build and Customization Options

Constructed from powder-coated mild and stainless steel, the machine is designed for durability in demanding settings, tolerating up to 90% relative humidity and 045C temperatures. With semi-automatic and fully automatic selectable modes, flexibility for various production requirements is built in.

FAQs of Foil Cutting Machines:

Q: How does the automatic quality control system work in the foil cutting machine?

A: The machine features built-in automatic quality control and in-line inspection systems. These monitor and analyze each roll in real time, detecting inconsistencies or defects. If any issue is detected, the system can halt production or alert the operator, ensuring every roll meets standards before it leaves the line.

Q: What types of foil materials can this machine process efficiently?

A: Designed for versatility, the machine handles various foil types, including aluminum, copper, and stainless steel foils, among others. The high-speed steel blades and precise controls ensure clean cuts across a broad range of thicknesses and materials.

Q: When and where is on-site installation available for this machine?

A: On-site installation services are available upon purchase. Qualified technicians from the manufacturer or supplier in India will visit your production facility at a mutually agreed time to set up, calibrate, and demonstrate the machine for your team.

Q: What are the energy and air requirements for operating this foil cutting machine?

A: The machine operates on a single-phase, 240 Volt power supply with a 3.5 kW consumption rate. It also requires a consistent air pressure of 6 Bar for efficient pneumatic functions. These specifications ensure reliable operation in an industrial setting.

Q: How does the PLC-based control system benefit daily operations?

A: The PLC-based system ensures precise, programmable control over all machine functions, including speed, blade movement, and safety protocols. Combined with the touch screen interface, this setup reduces human error, improves repeatability, and allows for easy adjustments during operation.

Q: What safety features are implemented to protect operators during usage?

A: Operator safety is prioritized through features like an emergency stop button and overload protection. These safeguards rapidly halt machine operations under dangerous conditions, minimizing accident risks and protecting personnel.
