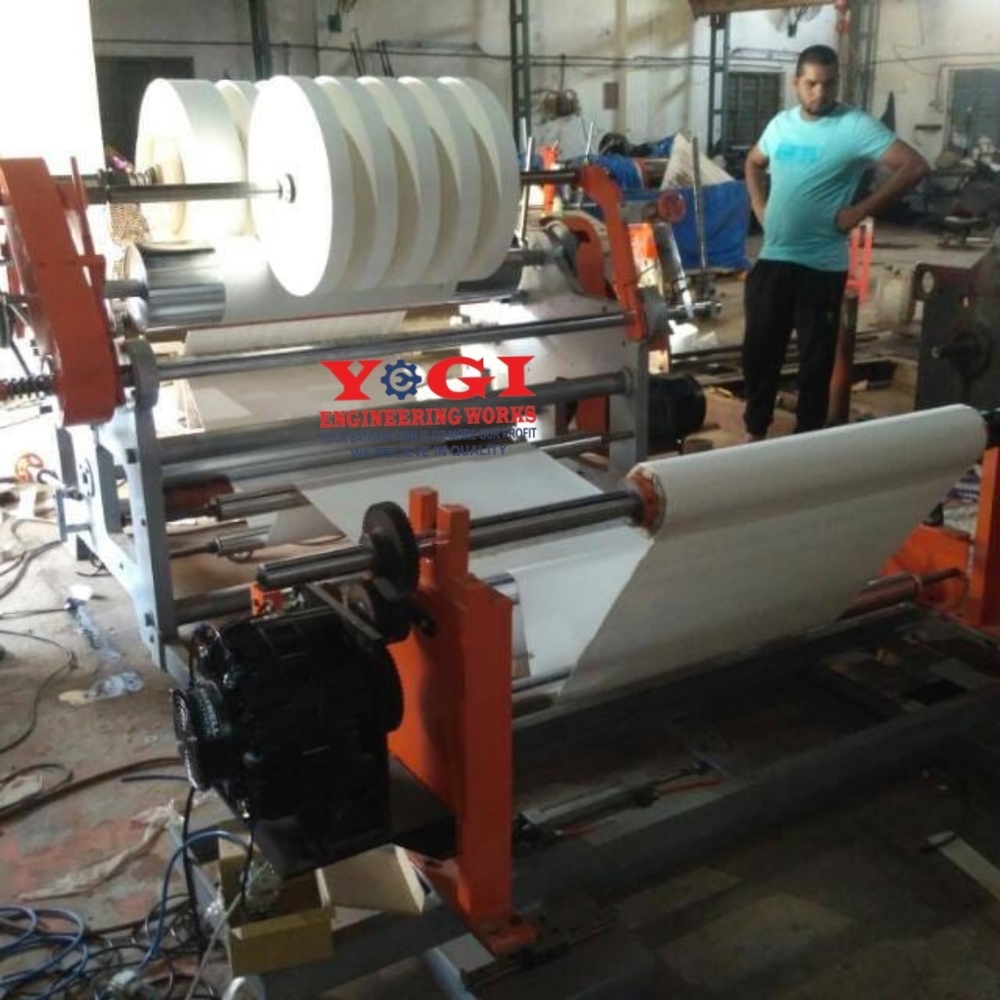

Drum Type Slitting Machine

About Drum Type Slitting Machine

Technical Speciation:

Flexible & Packaging Industries all material use our Slitting Rewinding Machine

Material will be Process:All Types Paper like Craft Paper, Paper Cup, Wax Paper, Sublimation Paper, Release Paper, Thermal Paper, Foil Paper, Butter Paper, Laminated Paper, All Types Fabric, Non-Woven, Cloth, All Type Film, Plastic Film, HDPE, LD, PP, Film, BOPP-Polyester Film, Metalize Film,PET Film, Stretch Film, Cling Film, PVC Film, Pouch, Foil, Aluminum Foil, Pharma Foil, Bister Foil, Rubber etc.

MS Plate Heavy Duty Machine Structure
Roll Width: 500mm to 2000mm Standard
Motor 3 HP to 12 HP A.C. Motor
Control Panel 3 HP to 12 HP A.C. Digitalfrequency Drive
(Penal Section we provide you Auto Start andStop Button, Length Counting meter,Speed Adjustable-Sensor, Emergency Stop.)
Our Machine Easily Operating System
Mechanical Shaft Unwinder/Rewinder side Chuck-Nut-Bearing use
Jumbo Roll Weight Capacity Upto 1000Kg
Slitting System with Cutter Assembly
Unwinder/Rewinder Roll Dia Mtr Upto 1000mm
Mechanical Break System for Tension UnwinderJumbo Roll
Rewinding Side Clutch System
Web (Edge) Guide System-Hydraulic-(Thismachine so that you can take properrewinding and finishing for Your Roll.)
Blower for Trimming Arrangement
All Side Vertical Covered from M.S. Sheet
Heavy Duty Chain Drive System
Rewinding Speed: 100 MPM.
Weight of Machine 2000 Kg Approx.
Machine Available: Three Phase

Optional ItemsAvailable

Air Shaft-Unwinder& Rewinder Side
Heavy Duty Taming Belt System
Electrical Web (Edge) Guide & Line Guide System
Pneumatic Break-Semi Automatic Break System
Auto Tension Control System-Automatic Break System
High Speed Require so Available 3 Drive/4Drive System-300 MPM High Speed
