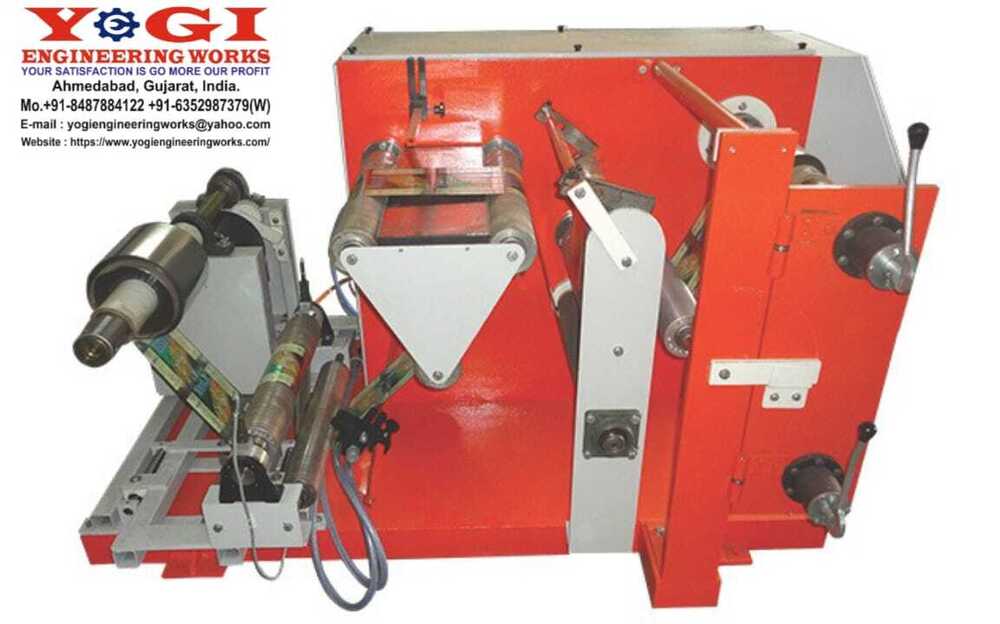

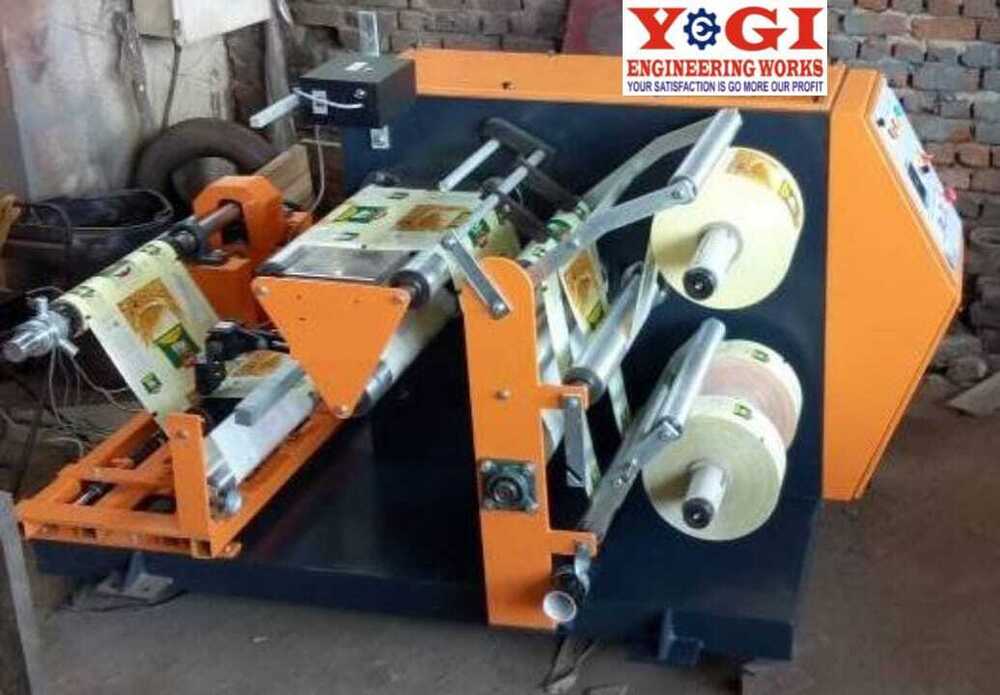

Doctoring Cum Slitting Rewinding Machine

About Doctoring Cum Slitting Rewinding Machine

• TechnicalSpeciation:

ï

• Material will be Process: LD, PP, Film, Pouch, Foil etc.
• Maximum Roll Width: 450 mm Standard
• Unwinder Roll Dia- Up to 300mm
• Rewinder Roll Dia- Up to 200mm
• Jumbo Roll Weight Capacity 35 Kg
• Heavy Duty MS Plate Structure
• Motor 3 HP A.C. Motor
• Control Panel 3 HP A.C.-Digital A.C. frequency Drive
• (Penal Section we provide you Start and Stop Button, Length Counting meter,Speed adjustable, Sensor & Emergency Stop.)
• Cantilever Type Design Our Machine Easily Operating System
• Encoder Feedback
• Slitting System with 5 No. Cutters
• Equipment for Slitting Operations
• (Unwinder Unit) (Check Nut) (Slip Rings)
• Blower System for Trimming Arrangement
• 1 No. Mechanical Shaft Unwinder side Chuck-Nut-Bearing use
• 2 No. Mechanical Shaft Rewinder side Chuck-Nut-Bearing use
• Mechanical Break System for Tension Unwinder Jumbo Roll
• Web (Edge) Guide System-Hydraulic- (This machine so that you can take properrewinding and finishing for Your Roll.)
• All Side Vertical Covered from M.S. Sheet
• Heavy Duty Chain Drive System
• Rewinding Speed: 120 MPM.
• Weight of Machine 1000 Kg Approx.
• Machine Available: Three Phaseï ï ï ï ï ï ï ï
